ComBricks 2 Channel PROFIBUS Fiber Optic Module
ComBricks 2 Channel PROFIBUS Fiber Optic Module side view, Anybus Diagnostics MPN: 101-201510
ComBricks 2 Channel PROFIBUS Fiber Optic Module front view, Anybus Diagnostics MPN: 101-201510

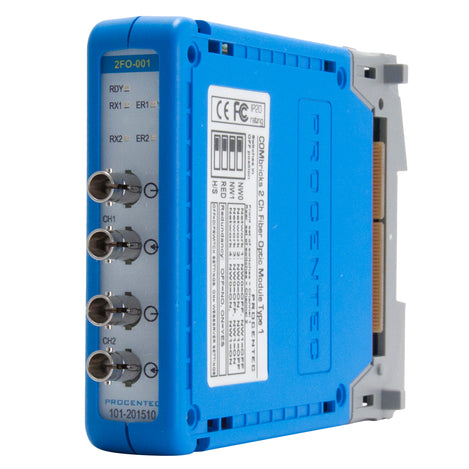

PROFIBUS Fiber Optic Module
PROFIBUS Fiber Optic Module - Front

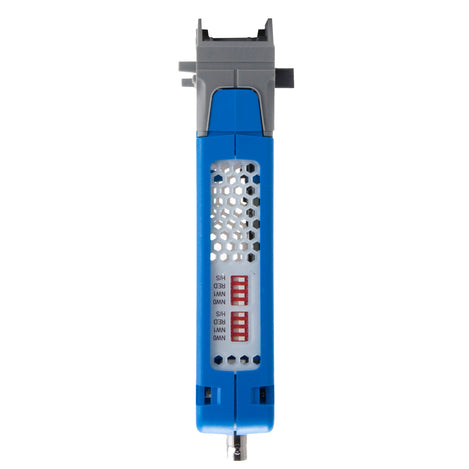

PROFIBUS Fiber Optic Module - Top

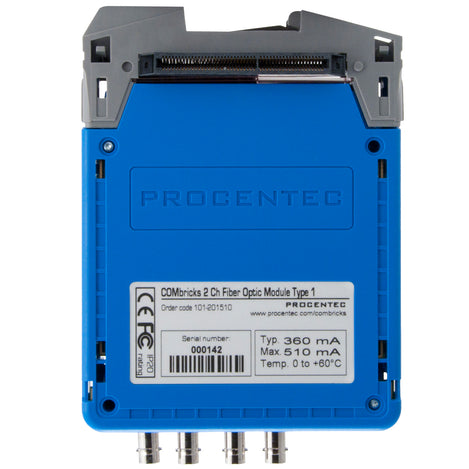

PROFIBUS Fiber Optic Module - Side 1

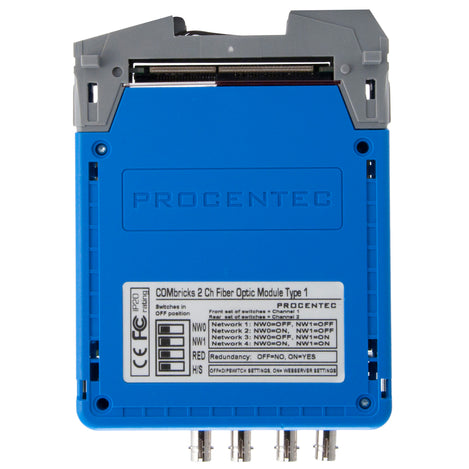

PROFIBUS Fiber Optic Module - Side 2
ComBricks 2 Channel PROFIBUS Fiber Optic Module
Product Images
ComBricks 2 Channel PROFIBUS Fiber Optic Module
$1,194.00
SKU: GC-PB-CB-2CH-FIBER
MPN: 101-201510
Manufacturer: Anybus Diagnostics
We Have You Covered
Product Information
Product Description
The ComBricks 2 Channel PROFIBUS fiber optic module allow for fiber links up to 3 km using multimode cable. Fiber optics links and backbones are very useful in PROFIBUS installations where distance and/or grounding are a problem. This module enables long cable distances and a galvanic isolation between devices and segments. It is suitable for: point-to-point, bus, star and hub topologies.
The fiber optic modules can be placed side by side with standard or SCOPE copper repeater modules. Just like any other ComBricks module, the channels are directly connected with the ProfiTrace OE core in the Head Station. Busmonitor data is directly available in the web server.
ComBricks can easily be transformed to a fully dedicated fiber optic hub mixed with copper segments. The hub topology delivers an optimized delay time and live expansion.
The advanced 12 Mbps core of the fiber optic module can be cascaded unlimitedly with other fiber modules. It contains diagnostic LEDs and supports the redundancy feature. The fiber connection is utilized by 4 ST/BFOC connectors.
Features
- Fiber optic modules can be used in combination with any other type of COMbricks modules in the same system.
- Up to 3km cables with multimode fiber.
- Compatible with most other vendors
- Unlimited cascading depth
- DIN-rail mount
- Back-plane extender included
- 1 Year Warranty
Documents and Drivers
Documentation
ComBricks 2 Channel PROFIBUS Fiber Optic Module Datasheet
ComBricks 2 Channel PROFIBUS Fiber Optic Module Product Card
ComBricks User Manual
Downloads
ComBricks DWG Drawing
Specifications
Backplane
Support for up to 10 High Speed Modules, Up to 32 Modules Total
Cascading Depth
No limit
Channels
2 Fiber channels
Compatible Backplane Units
101-200011, 101-200023, 101-200012
Dimensions
140 x 110 x 25 mm
Interface(s)
Fiber optic:
- 3 km cable length
- Point-to-point, star and bus topologies
- 4 ST/BFOC connectors
- Multimode cable G62.5 / 125 (OM1) - 850 nm
- Compatible with most other vendors in 3rd party compatibility mode
- Fiber redundancy (switchable)
- No limit in cascading
Internal Web Server
Required Head Station firmware: V1.264 and later
MPN
101-201510
Networks
PROFIBUS: 4 (set by dip-switches or webserver)
Power Consumption
+/- 400mA
Power Supply
Provided through the backplane
Product Weight
121 g
Protocols
- Transparent for all PROFIBUS protocols
- 9.6 kbps - 12 Mbps (auto detection)
- 51 TBit delay time per module (3 km cable)
- No address required
Redundancy
Max 10 cables activated by switch
Temperature Range
0°C to +60°C (32°F to +140°F)
