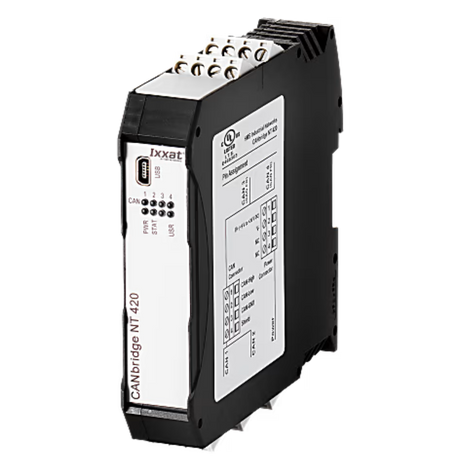

CanBridge NT420 - Intelligent CAN-to-CAN bridge with CAN FD support

$853.00

Leave a review

SKU: GC-IXT-CB-NT420

MPN: 1.01.0331.42000

Manufacturer: Ixxat

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The Ixxat CANbridge NT 420 is a configurable CAN to CAN bridge/router to connect different CAN/CAN FD systems. There are 4 CAN channels of which 2 are CAN FD switchable via software. Long-distance communication is via several message processing and multiplexing functionalities.

This all in one device can be used as a PC interface, as a CAN-Ethernet-CAN bridge or as a CAN Ethernet gateway.  Bridge mode enables easy message exchange between CAN/CAN FD systems to setup tree or star topologies.

Streamline network traffic and enhance efficiency by using the advanced filter, ID translation, data mapping and multiplexing functionalities.  With additional programming of action rules using LUA, tailored responses to specific network events are possible.

Security and protection includes galvanic isolation and defined access levels for configuration or firmware updates.

Features

  • Three operation modes in 1 device (bridge, gateway, PC interface)
  • Bridge operation enables CAN system expansion
  • For CAN and CAN FD networks
  • Cost savings from simple wiring
  • On device intelligence
  • Customizable actions
  • Device and System Protection
  • Configurable security levels
  • Easy configuration and maintenance

Documents and Drivers

Documentation

CAN Gateway Configurator for CAN@net NT & CANbridge NT User Manual

Lua ADK for CAN@net NT & CANbridge NT

CANbridge NT 200 and 420 User Manual

Downloads

VCI V4 - Windows 11, 10 [Driver, canAnalyser-Mini, Manuals, LabView and other add-ons]

CAN Gateway Configurator - CANbridge NT & CAN@net NT 100/200/420

Specifications

Package Content

  • CANbridge NT device
  • User manual
  • Mini USB cable
  • DIN rail mount bracket
  • CAN-Gateway Configurator tool (free download)
  • CAN driver VCI (free download)
  • Simple CAN monitor "canAnalyser Mini" (free download)

Dimensions (W x H x D)

99 x 114.5 x 22.5 mm  (3.9 x 5 x .9 in)

Weight

184 g  ( .4 lb )

Mounting

DIN rail mount

Current Consumption

110 mA (24 V DC), 220 mA (12 V DC)

Input Voltage

9 V to 36 V DC, with overvoltage and polarity protection

Isolation

1 kV DC for 1 sec.

Temperature

Operating and Storage:  -40°C ~ 85°C (-40°F ~ 185°F)

Relative Humidity

10 to 95 %, non-condensing

Enclosure

IP20, Polyamide housing for top hat rail mounting

Certifications

  • CE, UL, FCC
  • WEEE Category - IT and telecommunication equipment
  • ETIM Classification:- EC000673

Connectors / Input / Output

1 x Mini USB port, 5 x screw terminals (4 x fieldbus, 1 x power)

CAN Mode

  • CAN high-speed (ISO 11898-2:2016)
  • ISO CAN FD (ISO 11898-1: 2015)

CAN Baud Rate

  • CAN:  5 kBit/s to 1 MBit/s
  • CAN FD: Arbitration rate up to 1000 kBit/s, data rate up to 8000 kBit/s (verified by testing). User defined bit rates are possible.
