CANblue II - CAN to Bluetooth gateway/bridge and PC Interface

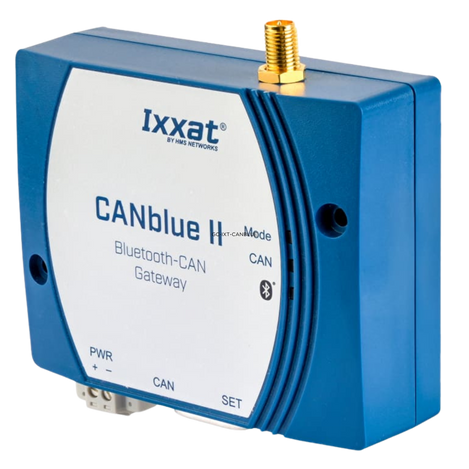

CANblue II Bluetooth-CAN Gateway, a versatile and cost-effective Bluetooth module for CAN systems that can be used with an external antenna. angled right

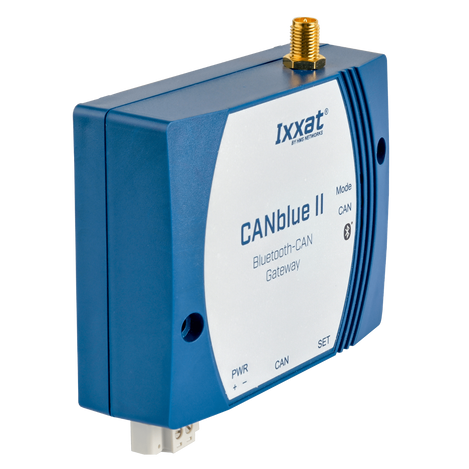

CANblue II Bluetooth-CAN Gateway, a versatile and cost-effective Bluetooth module for CAN systems that can be used with an external antenna. angled left
CANblue II - CAN to Bluetooth gateway/bridge and PC Interface
Product Images
CANblue II - CAN to Bluetooth gateway/bridge and PC Interface
$650.00
SKU: GC-IXT-CANBLUE
MPN: 1.01.0126.12001
Manufacturer: Ixxat
We Have You Covered
Product Information
Product Description
CANblue II is a versatile and cost-effective Bluetooth module for CAN systems that can be used with an external antenna (sold separately). It is ideal for mobile configuration, analysis, and conveniently bridging CAN networks via Bluetooth.
3 operation modes: PC interface, bridge, and gateway makes this device suitable for various application areas. PC interface mode has VCI driver support that enables easy integration into PC-based Ixxat applications and customer-specific programs. Bridge mode establishes a CAN-Bluetooth-CAN bridge with two or more CANblue II devices and ensures seamless, transparent message exchange independent of the used protocol.
ASCII/binary protocol mode: Simple ASCII commands and optimized CAN binary messages enable CAN message exchange for "non-Windows" systems or embedded platforms as well as for device configuration.
Wireless transmission up to 200 meters: Easily connect remote systems, moving or difficult to access components, or bridging of slip ring connections.
High performance transmission with low latency: High-speed data transfer with minimal delays ensures efficient and prompt data delivery.
Overvoltage protection: Galvanic isolation safeguards against overvoltage and protects from potential electrical damage.
Seamless PC operation under Windows and Linux: Powerful driver packages enable easy integration into PC-based Ixxat applications and customer-specific programs.
Analysis software included: Ixxat canAnalyser3 Mini is included in the VCI V4 download package and enables first steps in analyzing and monitoring CAN networks.
Features
- Three operation modes in one device (PC interface, bridge, or gateway)
- PC operation mode with VCI driver support
- Bridge mode with multiple devices
- ASCII/binary protocol mode
- Easy wireless transmission up to 200 mm
- High-performance transmission with low latency
- Seamless PC operation under Windows and Linux
- Analysis software included
Documents and Drivers
Documentation
CANblue II User Manual
Downloads
VCI V4 Windows 11, 10 Drivers
Specifications
Package Content
- CANblue II device
- user manual
- CAN driver VCI (free download)
- simple CAN monitor "canAnalyser Mini" (free download)
Dimensions
82 x 64 x 26 mm ( 3.2 x 2.5 x 1 in)
Weight
240 g (.5 lb)
Mounting
Wall Mount
Current Consumption
- Type Value at Vcc Nom (mA): 50 mA (12 V DC)
- Max value at Vcc nom (mA): 100 mA (12 V DC)
Input Voltage (V)
9 V to 30 V DC
Isolation
1 kV DC for 1 sec.
Temperature
Operating: -40°C ~ 85°C (-40°F ~ 185°F)
Enclosure
Plastic
Antenna Connector
RP-SMA
Connectors / Input / Output
1 x D-Sub 9 connector, 1 x power connector
Bluetooth Version
Bluetooth v4.0
CAN Mode
CAN high-speed (ISO 11898-2)
CAN Transceiver
TI SN65HVD251
