CAN to USB Adapter (PCAN-USB): No Isolation

$239.00

4.9 stars 4.9 (50) See customer reviews

SKU: GC-CAN-USB

MPN: IPEH-002021

Manufacturer: Peak System Technik

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

Isolation Options

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Discover the best CAN to USB adapters on the market - the reliable IPEH-002021 and IPEH-002022 - guaranteed by the CAN experts at PEAK.

The PCAN-USB Adapter is a compact and reliable solution for connecting your PC to a CAN bus network. Designed for professionals in industrial, medical, and automotive sectors, this adapter enables seamless monitoring and communication with CAN-based devices. With a simple plug-and-play setup, no external power supply is required, as it operates through your USB connection.

Equipped with baud rates of up to 1 Mbps, the PCAN-USB adapter supports a wide range of CAN protocols, making it ideal for data logging, diagnostics, and development tasks. Whether you’re designing embedded systems or troubleshooting industrial equipment, this tool offers flexibility and high performance.

Compatibility is at the forefront, with the PCAN-USB adapter supporting USB 1.1, 2.0, and 3.0 ports. The device works with standard and extended CAN formats, ensuring compliance with ISO 11898-2 specifications. For Windows users, the included PCAN-View software provides a powerful interface for real-time network analysis and troubleshooting.

For those looking to power a PEAK-System accessories, such as a PCAN-Optoadapter, a 5-volt supply can be connected to the CAN connection using a solder jumper.

The Peak-Systems brand ensures safety and reliability with certifications including CE and RoHS. For users needing galvanic isolation, an optional 500 VDC isolated version (GC-CAN-USB-ISO / MPN: IPEH-002022) is available. Its durable IP20-rated plastic enclosure ensures longevity even in challenging environments.

Streamline your workflow and enhance your productivity with the PCAN-USB Adapter, trusted by engineers and developers worldwide for reliable CAN bus communication.

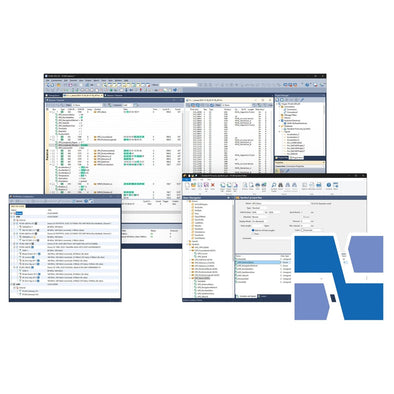

To explore advanced software monitoring, such as PCAN-Explorer 6, development interfaces and applications programs, check out CAN software options.



For Mac support and compatibility, check out the MacCAN OS X Library, specifically designed for PCAN USB Interfaces.

Pin Configuration:
Pin Configuration

Order Summary



SKU

Isolation Options

Manufacturer Part # (MPN)
GC_CAN_USB No Isolation IPEH-002021
GC-CAN-USB-ISO With Isolation
500 VDC galvanic isolation 		IPEH-002022

Features

  • Compact CAN to USB adapter for PC connectivity
  • Baud rates up to 1 Mbps for fast and efficient data transfer
  • 9-pin Male SUB-D
  • Supports all interrupt and port addresses configurations of the USB interface
  • Plug-and-play functionality with no external power supply required
  • Supports USB 1.1, 2.0, and 3.0 ports for versatile compatibility
  • Works with standard (2.0A) and extended (2.0B) CAN formats
  • Real-time monitoring and diagnostics using PCAN-View for Windows
  • Optional 500 VDC galvanic isolation for enhanced safety
  • CE and RoHS certifications for industrial and automotive compliance
  • Lightweight, durable IP20-rated plastic enclosure

Documents and Drivers

Documentation

PCAN-USB Hardware Manual

Downloads

Device Driver Setup - Outdated Windows Versions

Device Driver Setup - Windows® 11 & 10
Installation package with device drivers and tools for PC interfaces. Includes tools: PEAK-Settings, CAN monitor PCAN-View, LIN monitor PLIN-View Pro, Virtual PCAN-Gateway

PCAN-USB Linux Drivers
Device drivers for PEAK CAN interfaces running on Kernel 2.6 and higher.

MacCan OS X Library for PCAN-USB Interfaces

PEAK-System PCAN Download Support

Specifications

Baud Rate

CAN: max. 1 MBit/s

Certifications

CE, RoHS

Connector(s)

  • PC: USB plug type A, USB 1.1, compatible to USB 2.0 and 3.0
  • CAN: ISO 11898-2, complies with CiA-recommendation DS 102

Controller(s)

CAN: NXP / Phillips SJA1000

Dimensions

  • 75 x 43 x 22 mm
  • Isolated version: 87 x 43 x 22 mm

EMC Directive

  • EN 55024:2003-10
  • EN 55022:2007-04
  • EC directive 2004/108/EG

Enclosure

IP20, Plastic Enclosure

IO and IRQ

Automatically assigned via "plug n play"

Isolation

500 VDC galvanic isolation (available only with GC-CAN-USB-ISO option)

MPN

IPEH-002021, IPEH-002022

Pinout

C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)

Power Consumption

1 Channel max. 200 mA

Product Weight

  • 78 g
  • Isolated version: 83 g

Software

  • Driver: Supports Windows 11 & 10
  • Tools: PCAN-View for Windows®
  • Third Party Tools & Drivers: CANopen Object Browser for Windows, CANopen Object Browser for Linux, CANopen Commadline Tool, CANopen-over-TCP/IP Client, CAN Monitor using SocketCAN, CAN Monitor for Mac OS X Lion (10.7)

Specifications

CAN: 2.0A (Standard format) and 2.0B (extended format)

Storage Specifications

Temperature: -40°C to +100°C

Temperature Range

  • Operating: -40°C to +85°C (-40 to 185 °F)
  • Humidity: 15% to 90% (non-condensing)

Transceiver

CAN: NXP / Philips PCA82C251
