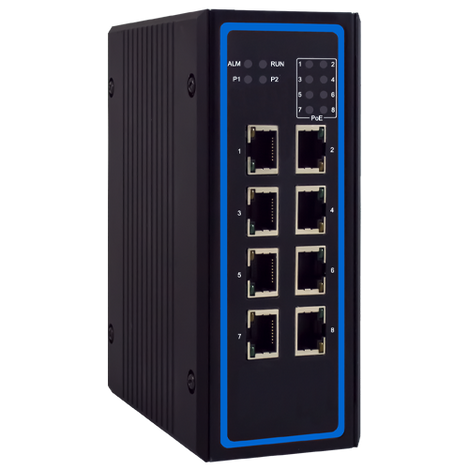

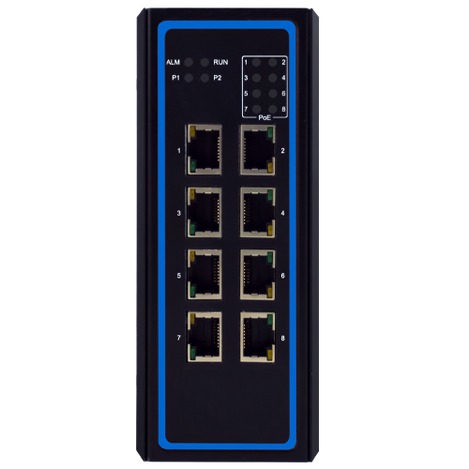

ATOP EHG6408 - Industrial 8-port Unmanaged Gigabit Switch (PoE optional)
ATOP EHG6408 - Industrial 8-port Unmanaged Gigabit Switch (PoE optional)
Product Images
ATOP EHG6408 - Industrial 8-port Unmanaged Gigabit Switch (PoE optional): 8 x non-PoE ports
$379.00
SKU: GC-ATOP-EHG6408
MPN: 1P1EHG64080004G
Manufacturer: Atop Technologies Inc.
Delivery: Ships within 1-2 weeks
Qualifies for Free shipping to the continental US
POE Ports
-
$379.00
-
$479.00
-
$539.00
We Have You Covered
Skip To Footer
Product Information
Product Description
The EHG6408 model features 8 x 10/100/1000BASET(X) ports, which supports a port configuration of 8 non-PoE ports or 8 PoE ports or 4 non-PoE ports with 4 PoE ports.
Industrial Grade Design
With its modern, slim, and flat design to minimize surface area usage, these switches are ideal for demanding industrial applications that require compact solutions to deliver network performance.
Supporting a wide operating temperature range of -40°C to 75°C and being compliant with essential sections of UL/CB(IEC) 62368-1 and MIL-STD-810F, these compact switches can perform in various environments under a variety of conditions, such as power input voltage, shock, drop and vibration.
PoE Voltage Booster Option
As part of its compact design, a voltage booster is available for PoE end devices. Available on the 24V models, the PoE Voltage Boost raises the input voltage of power inputs from as low as 12V, to provide Power over Ethernet to end devices. This addition removes the need for separate power inputs, which can often be costly and space-consuming.
Order Summary
SKU |
POE Ports |
Voltage Booster |
Manufacturer Part # (MPN) |
|---|---|---|---|
| GC-ATOP-EHG6408 | 0 | No |
1P1EHG64080004G |
| GC-ATOP-EHG6408-4POE-24V | 4 | Yes | 1P1EHG64080005G |
| GC-ATOP-EHG6408-8POE-24V | 8 | Yes | 1P1EHG64080006G |
Features
- 8 x 10/100/1000 BASE-T(X) ports or
- 8 x 10/100/1000 BASE-T(X) ports with 2 x 100/1000 SFP slots or
- 8 x 10/100/1000 BASE-T(X) ports with 2 x 1000 BASE-X SFP slots
- Optional PoE ports with booster function (12~57 VDC)
- IP30 aluminum with DIP-Rail / Wall mount (optional)
- Operating range of -40°C to +75°C
- CB/IEC60950-1&62368-1 and UL/cUL62368-1
Documents and Drivers
Documentation
ATOP EHG6408 - 8-port unmanaged 24V PoE Gigabit Switch Datasheet
ATOP EHG6408 - 8-port unmanaged 24V PoE Gigabit Switch Hardware Installation Guide
ATOP Industrial Ethernet Switches Product Selection Guide
Specifications

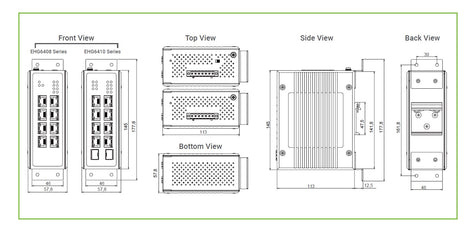

Dimensions
54 x 145 x 113 mm
Housing
IP30 metal housing
Humidity
5% to 95%, 55°C (Non-condensing)
Indicators LED
P1, P2, Fault, SFP1-2, PoE LED
Input Voltage
12~57 VDC
Mounting
DIN-Rail , Wall mount (optional kit)*
MPN
1P1EHG64080001G, 1P1EHG64080002G, 1P1EHG64080003G
Power Consumption
- 12~23VDC, max total 60W
- 24~57VDC, max total 120W
Product Weight
700g
Security/Protection
Safety:
- UL62368-1:2014(2nd Ed.),CB/IEC60950-1:2005(2nd Ed.),CB/IEC62368-1:2014(2nd Ed.)
EMC:
- FCC Part 15, Subpart B, Class A
- EN 55032:2015 +AC:2016 Class A
- EN 61000-3-2: 2014, Class A, EN 61000-3-3: 2013, EN 61000-6-4: 2007+ A1: 2001
- EN 55024: 2010+ A1:2015, EN 61000-6-2:2005+ AC : 2005
SKU
GC-ATOP-EHG6408, GC-ATOP-EHG6408-4POE-24V, GC-ATOP-EHG6408-8POE-24V
Temperature Range
Operating Temperature
- Non-PoE models:
- -40°C to +75°C (-40°F to +167°F)
- PoE models:
- 12~23VDC, 60W, -40°C to +70°C (-40°F to +158°F)
- 24~57VDC, 120W,-40°C to +70°C (-40°F to +158°F)
Storage Temperature:
- -40°C to +85°C (-40°F to +185°F)
Voltage
PoE Voltage Booster: Yes (Max support 120W), by optional model
