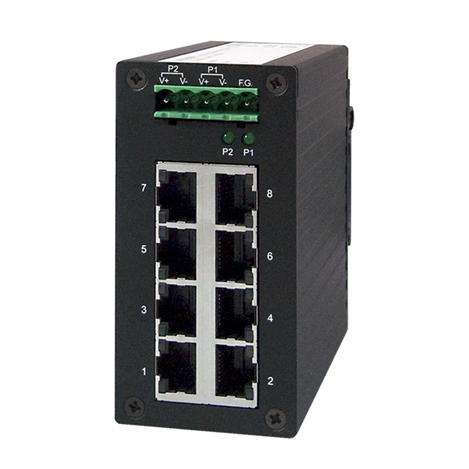

ATOP EHG2308 - 8-port Gigabit DIN-Rail Unmanaged Ethernet Switch

$189.00

Leave a review

SKU: GC-ATOP-EHG2308

MPN: 1P1EHG23080001G

Manufacturer: Atop Technologies Inc.

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

EHG2308 is an Ethernet Gigabit switch with 8 RJ-45 ports designed for industrial applications. It works in industrial environments, such as in hazardous locations, where it complies with CE, FCC, UL, IP50 and RoHS standards.

EHG2308 protects itself from receiving too many broadcast packets. During normal use, broadcast packets will be forwarded to all ports except the source port. However, it will discard broadcast or multicast packets if the number of those packets exceeds a threshold in a preset period of time. When the preset period expires (about 800ms), it will then resume receiving broadcast or multicast packets until the threshold is reached again.

EHG2308 provides two redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs failure, the other live source acts as a backup to provide the EHG2308 power needs automatically.

The device also embeds an Packet Prioritization feature that is advanced for unmanaged switches. The switch is able to read the QoS field inside the VLAN tag of the packet, prioritizing those that are important to reach the end device first, even during network congestion. This function is vital in Industrial Automation applications that are, for example, PROFINET Based.

Pinout information is included in the Hardware Installation Guide.

Features

  • 8 x 10/100/1000BaseT(X) RJ45 ports
  • 10/100/1000M Full/Half-Duplex, MDI/MDI-X auto-detection
  • Broadcast storm protection
  • Support IEEE 802.3/ 802.3u/ 802.3x
  • PROFINET Packet Prioritization according to 802.1p
  • Redundant DC power inputs
  • Rugged high-strength housing
  • DIN-Rail

Documents and Drivers

Documentation

Atop EHG2308 8-Port Unmanaged Gigabit Ethernet Switch Datasheet

Atop EHG2308 8-Port Unmanaged Gigabit Ethernet Switch Hardware Installation Guide
Pinout information included

ATOP Industrial Ethernet Switches Product Selection Guide

Specifications

Connector(s)

  • Ethernet: RJ45
  • Power: 5.08mm 5 pin Terminal Block

Current

Input Current: 0.45A

Dimensions

45.2mm x 90mm x 78mm (1.77in x 3.54in x 3.07in)

Housing

IP30 protection; aluminum housing

Humidity

5%~95% RH (Non-condensing)

Mounting

DIN Rail

MPN

1P1EHG23080001G

Ports

8

Power Consumption

4.05 Watts Max

Product Weight

255 g

Temperature Range

  • Operating: -10°C to 70°C (14°F to 158°F)
  • Storage: -40°C to 85°C (-40°F to 185°F)

Transmission Speed

10/100/1000 Mbps

Voltage

Input Voltage: 9-48 VDC
