ATOP EH2308 - 8-port Fast-Ethernet DIN-Rail Unmanaged Switch
ATOP EH2308 - 8-port Fast-Ethernet DIN-Rail Unmanaged Switch
Product Images

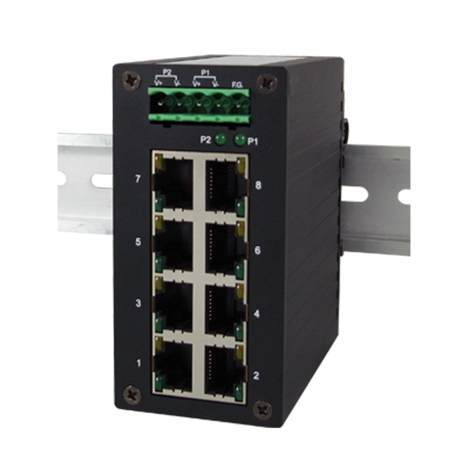

ATOP EH2308 - 8-port Fast-Ethernet DIN-Rail Unmanaged Switch
$129.00
SKU: GC-ATOP-EH2308
MPN: 1P1EH230800001G
Manufacturer: Atop Technologies Inc.
Stock Status: In stock
We Have You Covered
Product Information
Product Description
EH2308 unmanaged switch with 8 1 RJ-45 Fast-Ethernet ports for your industrial applications. It designs to work in the industrial environment, such as in hazardous locations, where it complies with CE, FCC, UL, and RoHS standards. EH2308 is also available in an E-Mark certified version, that allows this compact, powerful and cost-effective switch to be used in in-vehicle applications.
EH2308 protects itself from receiving too many broadcast packets. During normal use, broadcast packets will be forwarded to all ports except the source port. However, it will discard broadcast or multicast packets if the number of those packets exceeds a threshold in a preset period of time. When the preset period expires (about 800ms), it will then resume receiving broadcast or multicast packets until the threshold is reached again.
EH2308 provides two redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs failure, the other live source acts as a backup to provide the EH2308 power needs automatically.
Features
- Vehicle/E-Mark ECE R10rev.05
- 8 x 10/100BaseT(X) RJ45 ports
- 10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
- Broadcast storm protection
- Support IEEE 802.3/ 802.3u/ 802.3x
- Redundant dual DC power inputs
- Rugged high-strength aluminum housing
- DIN-Rail or wall mounting ability
Documents and Drivers
Documentation
Atop EH2308 8-Port Unmanaged Fast Ethernet Switch Datasheet
Atop EH2308 8-Port Unmanaged Fast Ethernet Switch Hardware Installation Guide
ATOP Industrial Ethernet Switches Product Selection Guide
Specifications
Connector(s)
Removable 5-pin Terminal Block for power input
Current
Max: 0.52A @9VDC
Dimensions
45.2mm x 90mm x 78mm (W x H x D)
Enclosure
IP30 protection, metal housing
Humidity
5%~95% non-condensing
MPN
1P1EH230800001G
Power
9~48 VDC, Dual inputs
Power Consumption
5 Watts Max
Product Weight
255g
Temperature Range
- Operating: -10°C to 70°C (14ºF to 158ºF)
- Storage: -40ºC to 85ºC ( 40ºF to 185ºF)
