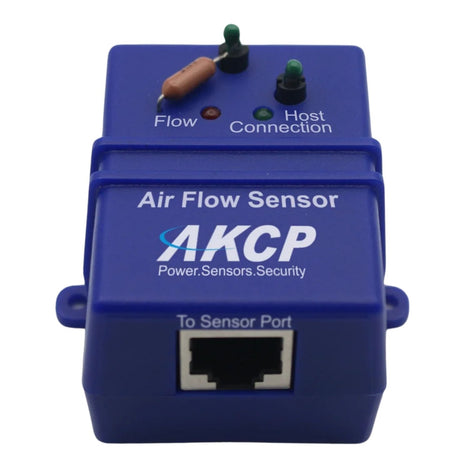

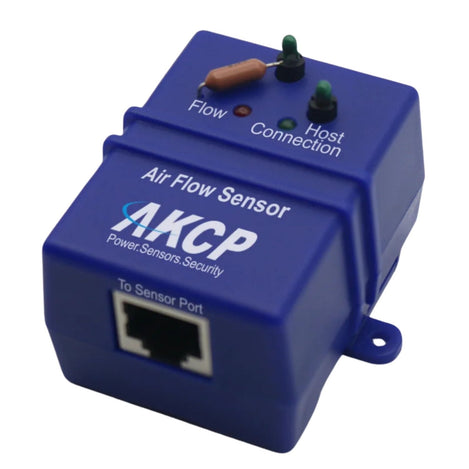

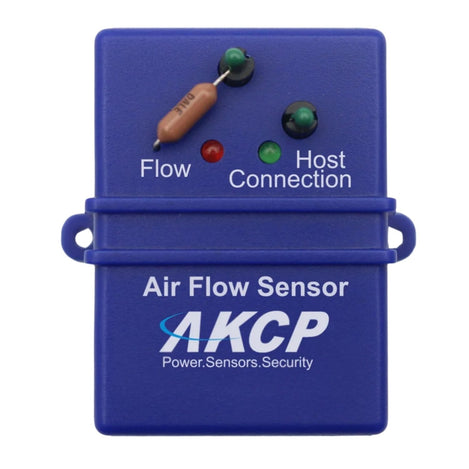

Air Flow Sensor
Air Flow Sensor
Product Images
Air Flow Sensor
$133.39
Regular price: $145.00
SKU: GC-AK-AFS-00
MPN: AFS00
Manufacturer: AKCP Co Ltd.
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The AKCP Air Flow sensor measures the presence or absence of air flow. This sensor will send an alert when it detects a failure in that steady flow of air. It is designed for systems where reliability and safety could be in jeopardy if cooling air flow stops.
Plug the air flow sensor into any AKCP sensorProbe or securityProbe controller and place the sensor in the path of the air stream where it can be monitored. The sensor can be anywhere within 1,000 feet of the controller (5 ft cable provided).
The controller monitors the status and displays the on/off information using a graphical display via its web interface.
An SNMP interface is provided for alarm/normal status and to get the current analog value.
- SNMP traps sent when critical
- SNMP polling via get available
- Web browser interface available
When an alarm condition is activated the description and location of the fault can be sent via email page.
Features
- AFS00 can be extended to your desired cable length using one of our CAT5 extension cables, CABXX, or you can provide your own cable of any length up to 60 feet
- On/off alarm signal of airflow
- Airflow data graphically displayed of over time
- Accurate, cost effective flow sensing
- Electronics mounted in a small plastic case
- SensorProbe autodetects the presence of the airflow sensor
- Up to 2 airflow sensors per sensorProbe2, 8 per sensorProbe8 and securityProbe
- Full autosense including disconnect alarm
- Data graphically displayed via a web page
Documents and Drivers
Documentation
Air Flow Sensor Datasheet
AKCP Sensor Selection Summary
Specifications
CAT5 Enabled
Allows you to add up to 1000' of CAT5 cable to the sensor (5 ft cable included).
Communications Cable
RJ-45 jack to sensorProbe
Data Collection
Data graphically displayed via webpage.
Indicators LED
2 LED's indicate the status of Airflow and that the sensor is securely plugged into the sensorProbe
Measurement Rate
One reading each second, data logging once per minute.
MPN
afs00
Power Consumption
Typical 429.50 mWatt, 85.90mA
Power Supply
Powered by the sensorProbe. No additional power needed.
Sensor(s)
Thermistor-Open/closed contact switch
Temperature Range
-20°C to +60°C (-4°F to +140°F)
Trap Information
Warning sensor number, Sensor description, On or Off condition
