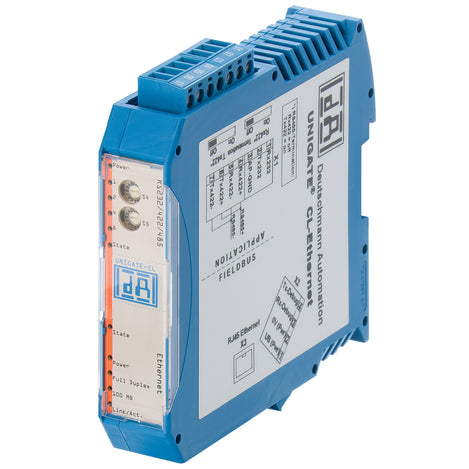

Unigate CL Fast Ethernet Gateway
Unigate CL Fast Ethernet Gateway
Product Images
Unigate CL Fast Ethernet Gateway
SKU: GC-CL-FASTETHERNET
MPN: V3611
Manufacturer: Deutschmann Automation
We Have You Covered
Product Information
Product Description
Ethernet-enable any RS232/485/422 serial or Modbus device with the UNIGATE CL Gateway. Make any serial device an Ethernet device using the UNIGATE CL Gateway. Its low-cost and flexibility are ideal for high volume applications. One side of the gateway is Ethernet, while the other side is a high performance serial port that directly interfaces with your serial device. The serial side of the UNIGATE can either be used in one of many standard configurations (including Modbus RTU master/slave and standard RS232/422/485), or can be customized with its built-in scripting language. Volume and OEM pricing available.
CUSTOM PROTOCOLS:
The UNIGATE CL Gateway allows for the quick development of custom applications on the serial side using its powerful scripting language. When developing a custom application, or for simple configuration to a standard protocol, we recommend using a Starter Kit. Starter kits contain all the connection cables and power supplies for configuring and/or scripting. Scripts are written using the Protocol Developer Tool. If you need a custom protocol and scripting is not for you, Grid Connect offers scripting services at reasonable rates (call for details).
Features
- Complete Ethernet Device Server
- Supports Ethernet UDP, TCP/IP, Modbus TCP, email, Webserver…
- Max. 1024 byte input and 1024 byte output data
- Script language for optimal adaptation to your field device
- Easy configuration from MS Windows® using the WinGate tool
- Develop customized scripts with the free Protocol Developer software tool
- Scripts are portable between all other UNIGATE CL or IC Gateways
Documents and Drivers
Documentation
Unigate CL Fast Ethernet Gateway Datasheet
Specifications
Baud Rate
- Bus: Auto Sensing, 10 to 100 Mbps
- Ethernet: 10 to 100 Mbps
- Serial: Up to 625 kbps
Bus Buffer
1024 Bytes I/O
Bus Termination
None
Certifications
CE
Characters T
7 or 8 data bits
Connector(s)
- Serial RS232: - 3 Pole Terminal Block (Tx, Rx, Gnd)
- Serial RS422/RS485: - 4 Pole Terminal Block (RxA, RxB, TxA, TxB)
- Ethernet: RJ45
- Configuration/Programming Port Interface: Terminal Block (Tx, Rx)
Current
Typical 120mA, max. 150mA at 24VDC
Data Buffer
1024 Bytes Input and 1024 Bytes Output
Data Rate
Serial: 110 to 625 kbps Baud
Dimensions
23 x 115 x 100 mm
Enclosure
IP24
Indicators LED
- Serial: Power, Code, State
- Ethernet: Power, Bus, State
Interface(s)
- Isolated Ethernet interface, optional galvanic isolation of the serial RS side
- Serial RS232, RS422 and RS485 interfaces on board
Mounting
DIN Rail
MPN
V3611
Software
MS Windows®-based WinGate configuration software, and Protocol Developer script development software
Parity
odd, even, none
Product Weight
130 g
Protocols
- Serial: RS232, RS422 or RS485, Modbus, plus Custom Protocols through Scripting
- Ethernet: UDP, TCP/IP, Modbus TCP, email, Webserver
- Configuration/ Programming Port Interface: RS232 (9600 Baud, 8, n, 1)
Security/Protection
Reverse Voltage, Short Circuit, Overload, Under voltage
Slave Address
MAC and IP addressing
Stop Bits
1 or 2
Temperature Range
- Storage: -40°C to +70°C (-40°F to +158°F)
- Operating: 0°C to +55°C (32°F to +131°F)
