Wall Mount IP Speaker
Wall Mount IP Speaker
Product Images
Wall Mount IP Speaker: Standard - Basic
$585.00
SKU: GC-IPIC-SPKR-IP-1
MPN: SPKR-IPSystem-1-HD
Manufacturer: Digital Acoustics LLC
Firmware Feature
-
$585.00
-
$680.00
-
$585.00
Speaker Type
-
$585.00
-
$664.00
We Have You Covered
Product Information
Product Description

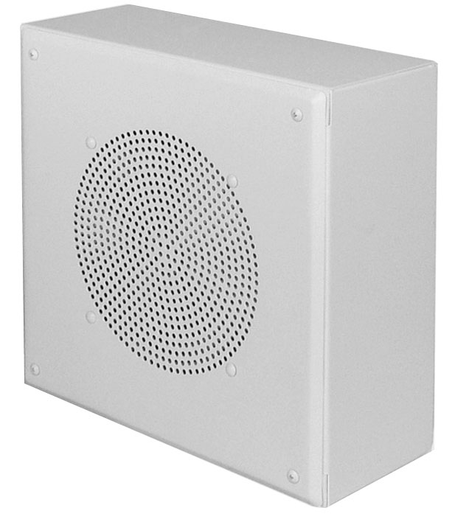

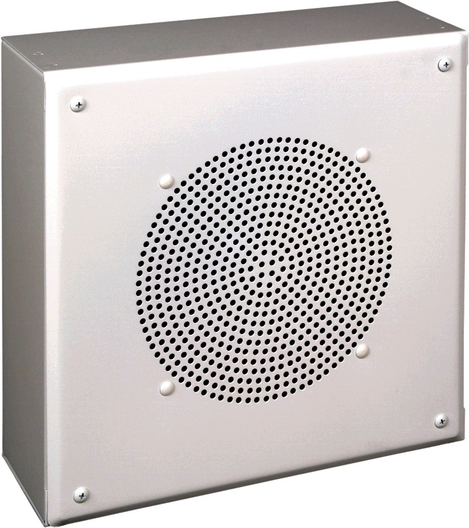

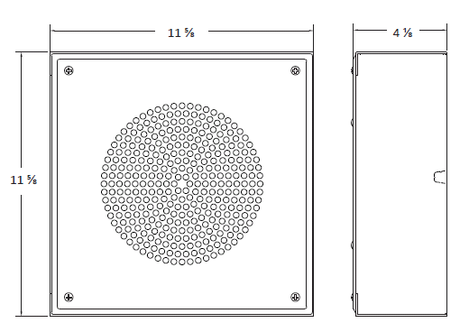

The Wall Mount IP Speaker is an enclosed wall mount IP Speaker, SIP Speaker, VoIP Speaker designed for IP Paging, SIP Paging and emergency notifications. It measures 11 5/8″ square by 4 1/8″ deep and is PoE powered.
This speaker is enabled with the ability for half duplex 2-Way/Talk-back (speaker is also used as a microphone).
Available is a heavier vandal resistant housing with security screens behind the face plate protecting the moisture resistant speaker. Suitable for outdoor use.
The IP7 Firmware Feature enables compatibility with Digital Acoustics TalkMaster FOCUS software and/or to SIP based phone systems.
The S3 Firmware Feature enables an IP Endpoint to connect to a SIP based Phone System.
The S3/InformaCast Firmware Feature enables the IP Endpoint to connect to Singlewire's InformaCast software and to SIP based Phone systems. Please note that InformaCast only supports outbound paging even on products that have two-way capabilities.
Order Summary
SKU |
Firmware Feature |
Speaker Type |
Manufacturer Part # (MPN) |
|---|---|---|---|
| GC-IPIC-SPKR-IP-1 | Standard | Basic | SPKR-IPSystem-1-HD |
| GC-IPIC-SPKR-IP-1-IC | InformaCast | Basic | SPKR-IPSystem-1-HD-S3-IC |
| GC-IPIC-SPKR-IP-1-VP | Standard | Vandal/Moisture Resistant | SPKR-IPSystem-1-VP-HD |
| GC-IPIC-SPKR-IP-1-VP-IC | InformaCast | Vandal/Moisture Resistant | SPKR-IPSystem-1-VP-HD-S3-IC |
| GC-IPIC-SPKR-IP-1-S3 | SIP Only | Basic | SPKR-IPSystem-1-HD-S3 |
| GC-IPIC-SPKR-IP-1-VP-S3 | SIP Only | Vandal/Moisture Resistant | SPKR-IPSystem-1-VP-HD-S3 |
Features
- Integrated 8-Watt IP Audio Amplifier
- Power-over-Ethernet (PoE)
- Multicast Protocol enables seamless, low-bandwidth audio
- Enabled for half duplex 2-Way / Talk-back (speaker is also used as a microphone)
- Deploy with TalkMaster™ Focus, VoIP telephones, custom software, or third-party applications
- Single CAT 5/5e/6 cable installation
- One SPKR-IPSystem-1 can be used for paging and two-way talk back for rooms up to 40’x40’
- Also available in a heavier vandal resistant housing with security screens behind the face plate protecting the speaker. Suitable for outdoor use (SPKR-IPSystem-1-VP)
Documents and Drivers
Documentation
Wall Mount IP Speaker Datasheet
Specifications
Audio Latency
<200ms Auto-Adaptive
Average Sensitivity
92 dB SPL at 1 Watt 1 Meter
Connection Modes
- TalkMaster™ Focus Endpoint
- SIP 2.0 Endpoint
- Hybrid TalkMaster™ Focus/SIP 2.0 Endpoint
- Direct Mode
- Singlewire Informacast
Connector IO
3.81 MM DIN Pluggable, RJ45, USB-B, RJ10
Core
ICC-512 50 MIPS System on a Chip
Dimensions
4.12 x 11.62 x 11.62 in (105 x 296 x 296 mm)
Fault Management
Advanced Fail-ForwardTM
Frequency Response
65 Hz - 17 kHz (EIA 462A
IP Address Assignment
Static, DHCP
Loudspeaker Power Rating
15 Watts
MPN
SPKR-IPSystem-1-HD, SPKR-IPSystem-1-HD-S3-IC, SPKR-IPSystem-1-VP-HD, SPKR-IPSystem-1-VP-HD-S3-IC, SPKR-IPSystem-1-HD-S3, SPKR-IPSystem-1-VP-HD-S3
Netowrk Interface
10/100 Base-T Ethernet, Auto-MDIX
Power
PoE (15.4W), 802.3af standard
Product Weight
Magnet Type & Weight: BeFe Ceramic 5 oz. Nominal
Protocols
- Network: TCP, UDP, RTP, SIP, ICMP, IGMP Multicast
- Audio: 8-bit PCM/G.711 uLaw
Remote Diagnostics
LED Status, USB, Temperature and Power Monitoring, Remote (reporting over Ethernet)
Remote Programming
Flash (USB), Ethernet
Speaker Out
8 Watt
Speaker Sizetype
8 “, 8 ohm
Temperature Range
- Operating: -30°C to +70°C (+22°F to +158°F)
- Storage: -40°C to +85°C (-40°F to +185°F)
Transport Bandwidth
Nominal 64kbps
