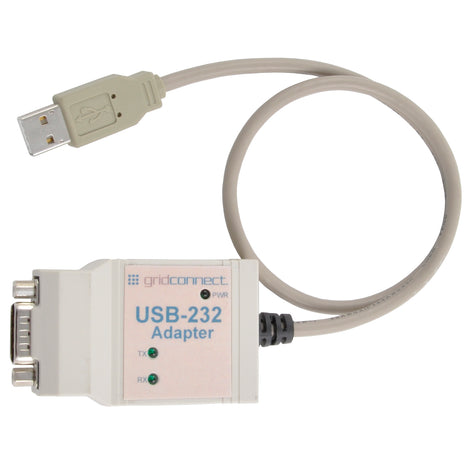

USB to RS232 - USB232
USB to RS232 - USB232 Serial
USB to RS232 - USB232 Angle
USB to RS232 - USB232 Top
USB to RS232 - USB232 W/ Removable USB
USB to RS232 - USB232 W/ Removable Cable
USB232 - USB to RS232 Adapter
Product Images
USB232 - USB to RS232 Adapter: Fixed Length USB Cable
$79.00
SKU: GC-USB232-DTE
MPN: GC-USB232-DTE
Manufacturer: Grid Connect Inc.
Stock Status: In stock
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com
Type
-
$79.00
-
$79.00
We Have You Covered
Product Information
Product Description
USB232 is an USB to RS232 adapter using the EXAR USB UART technology. It supports all 9 pin RS-232C signals and supports 12 Mbps USB full speed data rate.
Serial Port Pin Out (DTE/Male)
Pin |
Connection |
|---|---|
| 9 |
Ring Indicator |
| 8 |
CTS |
| 7 |
RTS |
| 6 |
DSR |
| 5 |
Ground |
| 4 |
DTR |
| 3 |
TXD |
| 2 |
RXD |
| 1 |
Carrier Detect |
Order Summary
SKU |
USB Cable |
Manufacturer Part # (MPN) |
|---|---|---|
| GC-USB232-DTE | Fixed Length USB Cable | GC-USB232-DTE |
| GC-USB232-DTE-R | Removable USB Cable | GC-USB232-DTE-R |
Documents and Drivers
Documentation
USB232 User Manual
USB232 Datasheet
Downloads
USB232 Windows 7 Driver
USB232 Windows 10 & newer Driver
Specifications
Baud Rate
- ±15kV isolation using the Human Body Model
- ±8kV isolation using the Contact Discharge method specified in IEC 1000-4-2
- ±15kV isolation using the Air-Gap Discharge method specified in IEC 1000-4-2
Cable Length
8 inches
Characters T
7, 8 or 9 data bits
Data Rate
- Supports 12 Mbps USB full-speed data rate
- 128 byte TX FIFO
- 384 byte RX FIFO
MPN
GC-USB232-DTE
Parity
1 or 2
Power Consumption
Power using USB +5V
Serial Interfaces
RS232
Stop Bits
RTS/CTS or DTR/DSR, XON/XOFF
Supported OS
Windows XP, Vista, 7, 8, 8.1, 10, 11
