This product has been upgraded and is no longer available.
The new version is GC-AK-CTHMS-V2.
Thermal Humidity Map Sensor for sensorProbe2 & SPX+

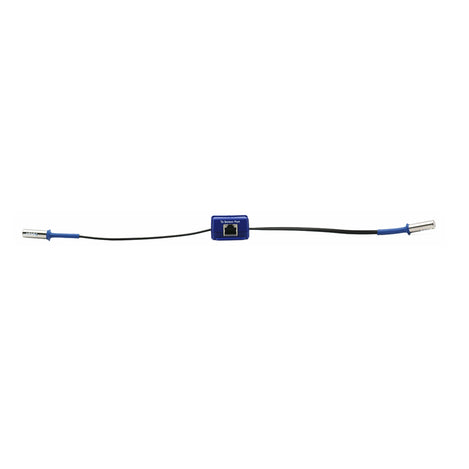

Themal Map Sensor Front Stretch View

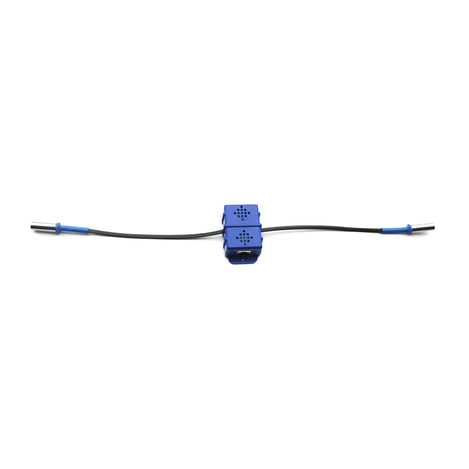

AKCP Thermal Map Sensor Back Stretch View

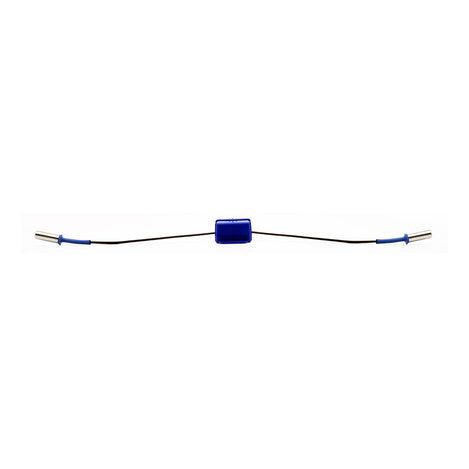

AKCP Thermal Map Sensor Top Stretch View

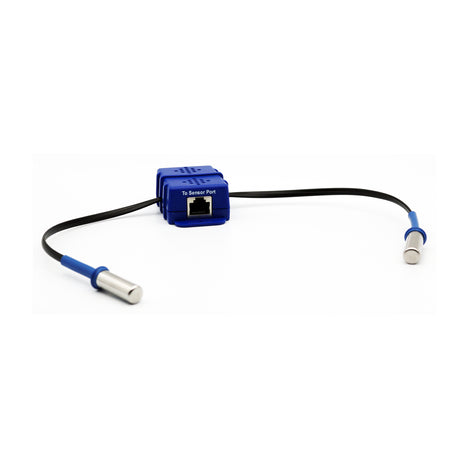

AKCP Themral Map Sensor Image

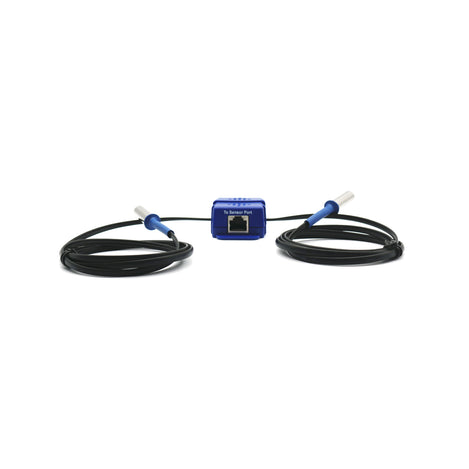

Thermal Map Sensor Front Coil View
Thermal Humidity Map Sensor for sensorProbe2 & SPX+
Product Images
Thermal Humidity Map Sensor for sensorProbe2 & SPX+
SKU: GC-AK-CTHMS
MPN: CTHMS
Manufacturer: AKCP Co Ltd.
We Have You Covered
Product Information
Product Description
The Thermal Humidity Map Sensor comes fully equipped with 6 temperature and 2 humidity sensors for monitoring and protecting computer cabinets. This sensor provides users with an accurate image of their computer cabinet’s temperature and humidity, which helps control cooling and eliminate hotspots.
The AKCPro Server software creates a visual representation of the computer cabinet to help locate hotspots. Once hotspots are located, it allows users to target where exactly in the cabinet cooling is needed, thus eliminated the costs of cooling. The sensor runs on very low power within any given server cabinet.
The sensorProbe2+ auto detects the Thermal Map Sensor once the user connects the RJ-45 jack to the sensor using the UTP CAT5/6 cable. The thermal map sensors should be installed at the base, middle, and top in the front and rear of the cabinet.
Using the SP2+ and thermal sensors for monitoring cabinets.
Features
- Monitor temperatures at the top, middle and bottom of a cabinet
- Monitor humidity at the middle of a cabinet
- Create Custom maps of data rooms
- Email or relay actions to trigger corrective action
- Sensor automatically detected by SP2+
Documents and Drivers
Documentation
Thermal Humidity Map Sensor Datasheet
Using Thermal Map Sensor with SP2+ for cabinet monitoring
Specifications
Communications Cable
RJ-45 jack to sensor using UTP CAT5/6 cable
Maximum Extension Cable Length
18 meters / 60 feet with approved low capacitance shielded UTP cable
Measurement Accuracy
Temperature:
- Maximum ±0.3 at -40ºC (±0.6 at -40ºF)
- Minimum ±0.3 at +25ºC and ±0.3 at +75ºC (±0.6 at +77ºF and ±0.6 at +167ºF)
Humidity:
- 25°C ±3% RH
Measurement Range
- Temperature: -40°C to +75°C (-40°F to +167°F)
- Humidity: 0 to 100% RH
Measurement Resolution
- Temperature: 0.1°C increments (0.2°F increments)
- Humidity: 1% RH increments
MPN
CTHMS
Power Consumption
- Temperature: 75 mWatt, 5 mA
- Humidity: 65 mWatt, 13 mA
Power Source
Powered by SP2+
Sensors
- Temperature: 6 sensors
- Humidity: 2 sensors
