Teltonika RUTM50 Cellular 5G Router - FCC Certified

$589.00

Leave a review

SKU: GC-TELT-RUTM50

MPN: RUTM5000000

Manufacturer: Teltonika IOT Solutions Canada Ltd.

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the US

We Have You Covered

Price Match delivery truck

1 year comprehensive warranty support for all products

hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

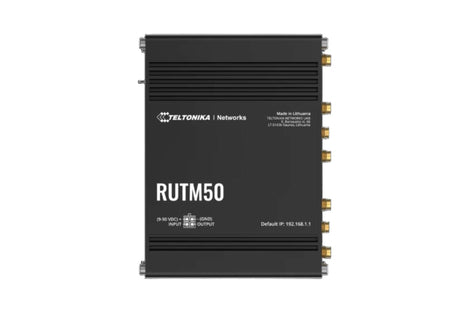

RUTM50 is an FCC-certified Teltonika Networks cellular 5G router for North America, and has ultra-high cellular speeds of up to 3.4 Gbps. This dual SIM router has auto-failover and backup WAN, and supports both SA and NSA 5G architectures.

RUTM50 is backward compatible with 4G (LTE Cat 19/18), making it perfect for future-proofing your industrial networking solutions.

Package includes

• RUTM50 Router
• 18 W PSU
• 4 x Mobile antennas (swivel, SMA male)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)

Features

  • 5G - ultra-high cellular speeds of up to 3.4 Gbps
  • DUAL SIM - auto-failover, backup WAN, and other switching scenarios
  • SA & NSA - supports both SA & NSA 5G architectures
  • Future-Proofing - backward compatible with 4G (LTE Cat 19/18)
  • FCC certified - North America

Documents and Drivers

Documentation

RUTM50 Flyer

RUTM50 Datasheet

RUTM50 Quick Start Guide

RUT50 User Manual

RUTM50 Certification and Approvals

Specifications

HARDWARE

Mobile

5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO) 900, 550Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps

CPU

MediaTek MT7621A, Dual-Core, 880 MHz, MIPS1004Kc

RAM

256MB DDR3

Storage

16MB serial NOR flash, 256MB serial NAND flash

Powering options

4-pin industrial DC power socket, 9 – 50 VDC

SIM

2 x SIM slot (Mini SIM – 2FF), 1.8 V, 3 V

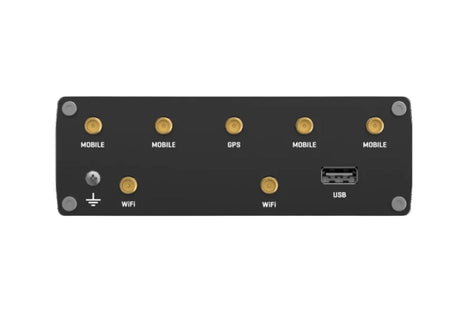

Antenna connectors

4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

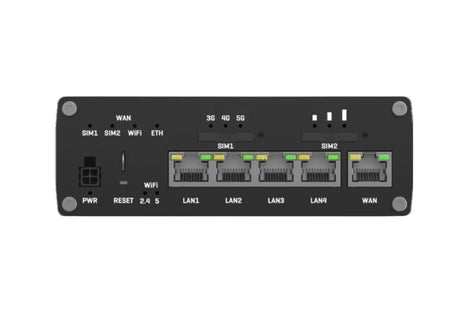

Ethernet

5x 10/100/1000 RJ45 ports: 1 x WAN port (configurable as LAN), 4 x LAN port

Wi-Fi

802.11b, g, n, ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)

GNSS

GPS, GLONASS, BeiDou, Galileo and QZSS

Inputs/Outputs

1 x Digital Input, 1 x Digital Output on 4-pin power connector

Other

1 x USB A port for external devices, 1 x Grounding screw

Status LEDs

3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN, status LEDs, 1x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs

Operating temperature

-40°C ~ 75°C (-40°F ~ 167°F)

Housing

Aluminum housing, DIN rail (can be mounted on two sides), flat surface placement

Dimensions

110 x 50 x 100 mm  (4.3 x 2.0 x 4.0 in)

Weight

519 g   (1.1 lb)

SOFTWARE

Operating system

RutOS (OpenWrt based Linux OS)

Mobile features

Auto APN, SIM switch, Call, SMS, USSD, Black/White list, Multiple PDN, Band management, Mobile module, Status, Bridge, Passthrough

Network features

Routing, Firewall, QoS / Smart Queue Management (SQM), Load balancing, Connection monitoring, VoIP passthrough support, DHCP, DDNS, Network backup, SSHFS

Monitoring and Management

WEB UI, FOTA, TR-069, SNMP, JSON-RPC, MQTT, SMS, Call, SSH, MODBUS, RMS

VPN and tunneling

OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc

Cloud solutions

RMS, Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub

Wireless Connectivity Features

Wireless mesh (802.11s), fast roaming (802.11r), Relayd

Hotspot

Captive portal, External/Internal Radius, SMS OTP, MAC authentication, Walled Garden

GNSS

NMEA, NTRIP, Server software (TAVL, RMS), Geofencing
