This product is discontinued and no longer available.
Replacement product is GC-TELT-RUT956 - Call to Order or for information.

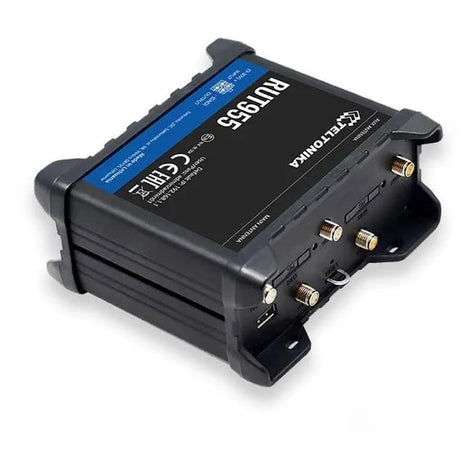

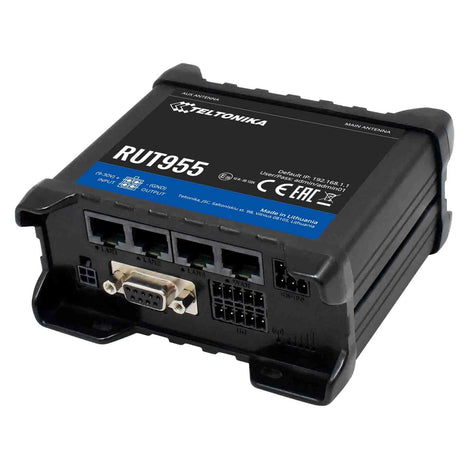

Teltonika RUT955 Industrial Cat4 Cellular Router, Dual Sim

Leave a review

SKU: GC-TELT-RUT955

MPN: RUT955W03660

Manufacturer: Teltonika IOT Solutions Canada Ltd.

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

RUT955 North American version is a highly reliable industrial LTE Cat 4 router that delivers high performance and GNSS location capabilities. Supports Universal IoT SIM cards and IoT SIM cards from AT&T, Verizon, T-Mobile, and Deutsche Telekom for North, Central, and South America

The following interfaces allow for an incredible variety of industrial application scenarios.

  • Ethernet
  • Digital
  • Analogue I/O
  • RS232
  • RS485
  • GNSS (GPS
  • microSD
  • USB

It is equipped with connectivity redundancy via Dual SIM failover.

The RutOS is packed with advanced software features, like Modbus, SNMP, TR-069, NTRIP, MQTT, and multiple VPN services.

Modbus enables communication among many devices connected to the same network. For example, a system that measures temperature and humidity  can communicate the results to a computer. This device is often used to connect a supervisory computer with a remote terminal unit (RTU) in supervisory control and data acquisition (SCADA) systems.

Features

  • 4G/LTE (Cat 4), 3G, 2G
  • Dual Sim for additional connection reliability
  • Global Navigation Satellite System for location services and time synchronization
  • Multiple digital and analog inputs and outputs for equipment control and event notification
  • RS232/RS485 serial communication interfaces
  • Compatible with Teltonika Remote Management System

Documents and Drivers

Documentation

RUT955 Cellular Router Datasheet

RUT955 Cellular Router Flyer

How to Serial Configure, Monitor and Tunnel Over Cellular-TCP/IP

RS232 Configuration

RS485 Configuration

Modbus Configuration

RUT955 Cellular Router Quick Start Guide

Specifications

Antennas

  • 2 x SMA for LTE
  • 2 x RP-SMA for WiFi
  • 1 x SMA for GNSS

Baud Rate

From 300 to 115200

Connector(s)

4 pin industrial DC power socket

CPU

Atheros Wasp, MIPS 74Kc, 550 MHz

Data Rate

USB 2.0

Dimensions

110 x 50 x 100 mm (4.33 x 1.97 x 3.94 inches)

Firmware

WEB UI, FOTA, RMS, Keep settings

Flash Storage

16 MB, SPI Flash

Housing

Aluminum housing, plastic panels

Humidity

10% to 90% non-condensing

Indicators LED

  • 1 x bi-color connection status LED
  • 5 x connection strength LEDs
  • 4 x LAN status LEDs
  • 1 x Power LED

Included in Box

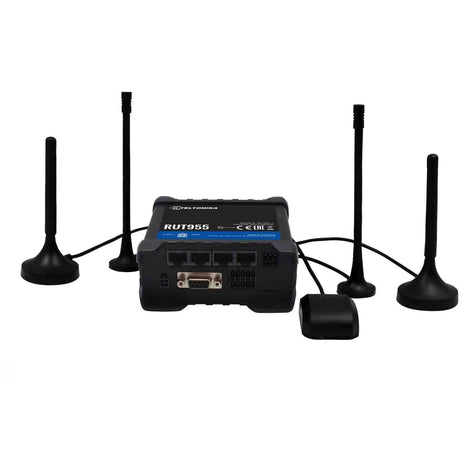

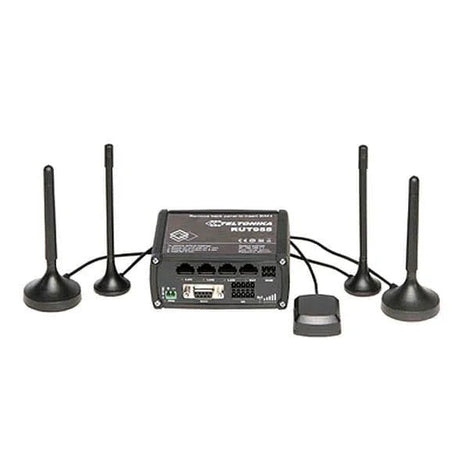

  • Router RUT955
  • 9 W PSU
  • 2 x LTE antennas (magnetic mount, SMA male, 3 m cable)
  • 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
  • GNSS antenna (adhesive , SMA male, 3 m cable)
  • RS485 connector block
  • I/O connector block
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • QSG (Quick Start Guide)
  • Packaging box

Input/Output

  • 2 x Inputs, 2 x Outputs on 10 pin industrial socket
  • 1 x digital input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4 pin power connector)
  • 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4 pin power connector)
  • 1x 10 pin industrial socket for inputs/outputs

Input Voltage

9 – 30 VDC reverse polarity protection; surge protection >31 VDC 10us max

Mounting

DIN rail (can be mounted on two sides), flat surface placement

MPN

RUT955W03660

Operating System

RutOS (OpenWrt based Linux OS)

Parity

None, Even, Odd

Pins

1 x 4 pin power connector

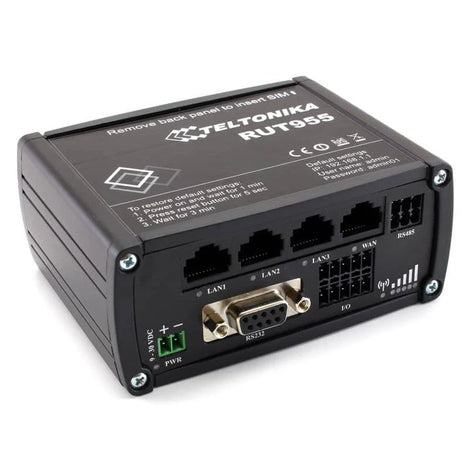

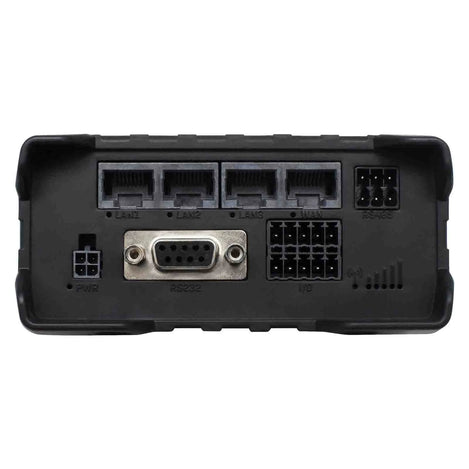

Ports

  • 4 x RJ45 ports, 10/100 Mbps
  • 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
  • 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
  • 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
  • 1 x DB9 socket
  • 1 x 6 pin industrial socket

Power Consumption

< 2 W idle, < 7 W Max

Product Weight

287 g

Protocols

Network Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, Wake On Lan (WOL)

Security/Protection

  • Authentication: Pre-shared key, digital certificates, X.509 certificates
  • Firewall: Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
  • Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLAN: Port and tag based VLAN separation
  • Mobile quota control: Set up custom data limits for both SIM cards
  • WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
  • Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

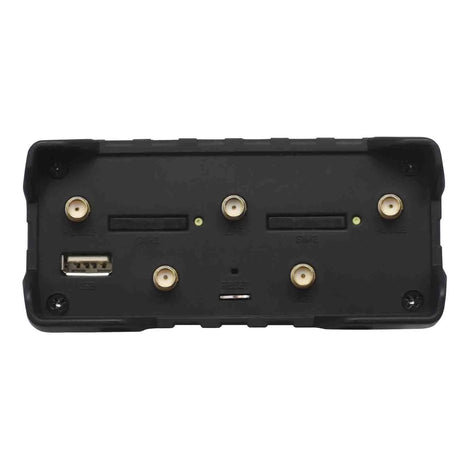

Slots

  • 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
  • Micro SD card slot

Temperature Range

-40°C to 75°C (-40°F to +167°F)
