SPKR-6HVP-T 16 Watt Indoor / Outdoor Paging Horn
SPKR-6HVP-T 16 Watt Indoor / Outdoor Paging Horn
Product Images
SPKR-6HVP-T 16 Watt Indoor / Outdoor Paging Horn: No Backbox
$280.00
SKU: GC-IPIC-HORN-6HVP-T
MPN: H16/SVP
Manufacturer: Quam-Nichols Co
Backbox
-
$280.00
-
$325.00
We Have You Covered
Product Information
Product Description

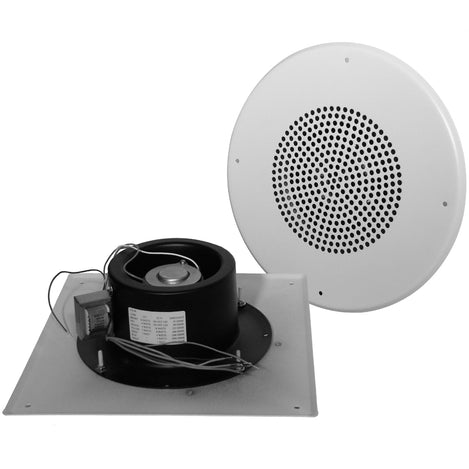

The SPKR-6HVP-T is a square (round and square pictured) loudspeaker assembly with double re-entrant horn, compression type loudspeaker, 25 and 70.7V universal transformer, 16 gauge steel baffle and #8 x 32 ‘pin-in-hex’ hardware. The finish is white baked epoxy hybrid.
Comes with a Backbox for easy installation.
INTENDED USE:
Outdoor, indoor environment, vertical or horizontal surface mount.
Specifications
Audio Connection
7" color-coded pigtails, pre-cut
Average Sensitivity
110 dB SPL, 1W/ 1M
Calculated Output
121 dB SPL, 16W/ 1M
Frequency Response
350 - 10 kHz
Loudspeaker Power Rating
16W RMS, EIA 426A Standard
MPN
H16/SVP
Nominal Coverage Angle
90° Included Angle, -6 dB / 2 kHz, Half space
Speaker Sizetype
Compression, re-entrant horn
