This product is discontinued and no longer available.

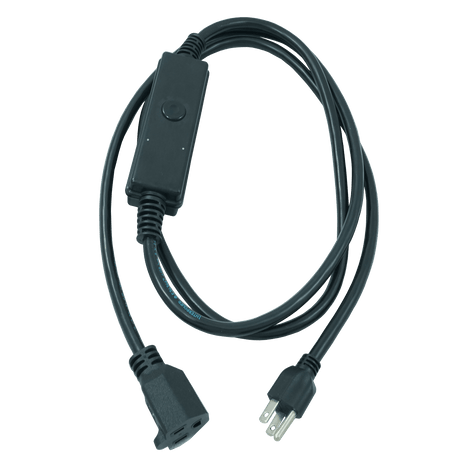

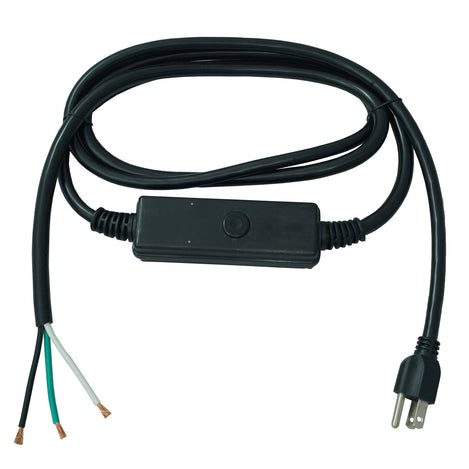

Smart Power Cord For AWS
Smart Power Cord For AWS
Product Images
Smart Power Cord For AWS
SKU: CS-SC-EXT6-15AMP-AWS
MPN: CS-SC-EXT6-15AMP-AWS
Manufacturer: Grid Connect Inc.
We Have You Covered
Product Information
Product Description

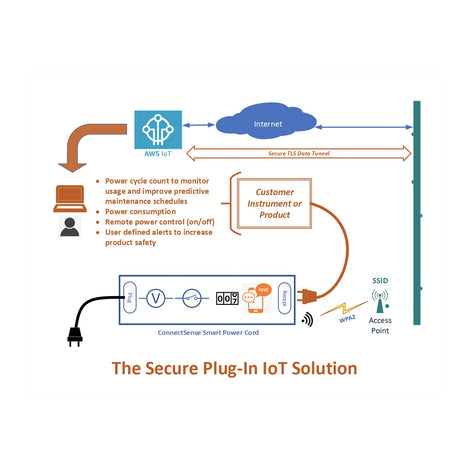

The Smart Power Cord for AWS is a plug-In IoT power solution that allows you to quickly and easily connect your device to AWS IoT. Using the AWS Cloud Quick Start Reference Deployment a user can connect the Smart Power Cord directly to their own AWS account. It can be quickly and securely provisioned using an existing Wi-Fi network.
This product requires the user to have their own AWS account and be willing to use the associated Quick Start to build an application to use the Smart Power Cord for AWS.
Within minutes you can monitor power consumption, voltage, and usage. The Smart Power Cord can also be used to remotely power your device on or off.
The cord is 6 Ft. long and comes with North American receptacle and plugs.
Benefits of the Smart Power Cord:
- Monitor usage to provide better predictive maintenance schedules
- Improve energy efficiencies
- Increase product safety thru user defined alerts
- Predict motor and pump failures
Common Applications Include:
- Commercial Appliances
- IT Equipment
- Electric Vehicle Charging
- Motors
- Load Shedding
- Pumps
Features
Plug-In IoT Solution
- Quick Start for AWS IoT connectivity
- Quick Start Guide to get IoT data to your AWS application
- Integrated power monitoring and remote management
- Secure crypto authentication
- Event driven rules engine with notifications
- Remote power control
Easy Deployment and Provisioning
- Security credentials are preconfigured to allow secure and easy connection
Secure IoT Solution
- Microchip ATECC608A Crypto Authentication to securely store private credentials
AWS IoT Cloud Managed
- High resolution monitoring of voltage, current, and power
- Data logging
On / Off Control – remote or local
Documents and Drivers
Documentation
Smart Cord for AWS Datasheet
Smart Power Cord on AWS Cloud Quick Start Reference Deployment
Specifications
Certifications
- UL, cUL, FCC, IC, CE, RoHS
- UL Certification UL60730-1 Part 1
Enclosure
Plastic IP65, UL rated 94V-0
Input/Output Current
up to 15A
Input Voltage
100-240VAC
Interface(s)
- Wi-Fi (802.11bg)
- BLE (optional: as a secondary wireless channel)
MPN
CS-SC-EXT6-15AMP-AWS
Power Consumption
1.5 watts
Power Supply
Built-in with World-wide approvals
Product Weight
62.4 g, 2.2 oz
