sensorProbe2+ LCD (Pro Version)
sensorProbe2+ LCD (Pro Version)
Product Images
sensorProbe2+ LCD (Pro Version)
$269.00
Regular price: $395.00
SKU: GC-AK-SP2-PLUS-P-LCD
MPN: SP2+P-LCD
Manufacturer: AKCP Co Ltd.
We Have You Covered
Product Information
Product Description

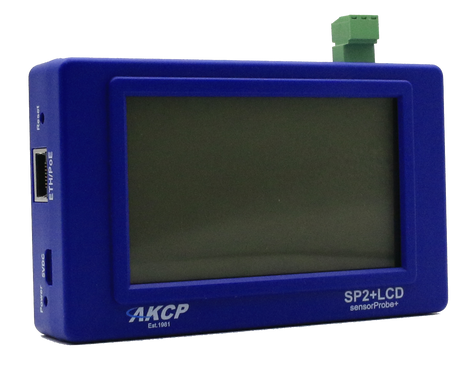

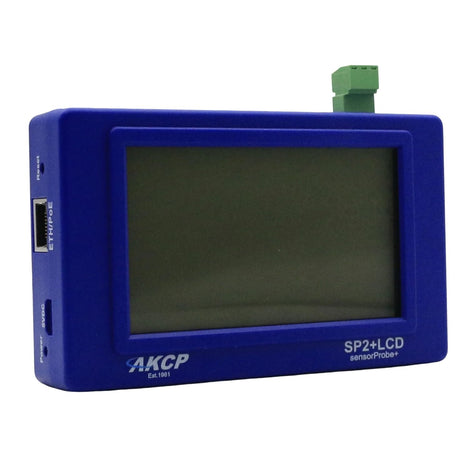

The sensorProbe2+ LCD (SP2+LCD) is based on our popular SP2+ device. Equipped with 4 sensor ports and a dry contact I/O, it is ideal for server rooms and monitoring of individual racks.
This Pro version of the SP2+LCD has PoE built in as standard; an additional 5VDC USB power input can be used as the primary source of power with PoE as backup power.

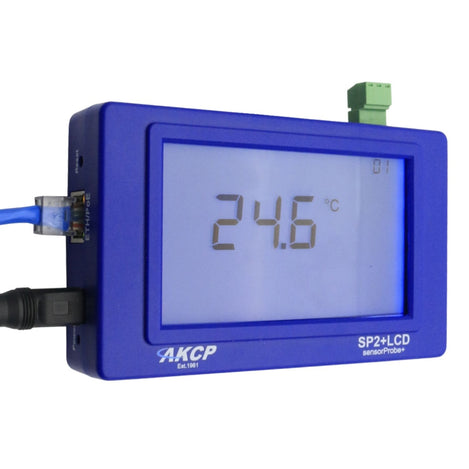

Mount this unit on the front, or with a 45° bracket on the top of your rack. The LCD provides a visual display of all sensor status and values.
Works with any AKCP intelligent sensor such as thermal maps, sensor status light, contactless current meters and water leak detection.
This comes with the Professional License. Compare SP2+ Basic and Professional licenses here.
Documents and Drivers
Documentation
sensorProbe2+ LCD Datasheet
Specifications
Dimensions
135 x 81 x 36 mm (5.31 x 3.19 x 1.42in)
Humidity
Min. 20% – Max. 80% (Non-Condensing)
Indicators LED
- LCD display for sensor values, status and IP address
- LED indication for Power
- LED for network connectivity
- LED for sensor online and threshold status
Input(s)
- 4x RJ-45 Sensor Ports (SP2+)
- 1x 10/100 Ethernet Port
- 1x UART external modem port
Interface(s)
Network:
- Standard 10/100 Mbps Full Duplex
- Ethernet RJ-45 Port
MTBF
1,400,000 Hours based on field experience with sensorProbe units.
Mounting
- 0U rack-mountable
- Built in DIN rail mounting clip
- Screw hole mounting
Output(s)
Configurable output signals (0VDC/5VDC) on any of the 4 RJ-45 sensor ports
Power
Requirements:
- PoE IEEE 802.3af support
- External 5.5V 3A Power Adapter
- Input Voltage and Current ratings : 100V~240V - 0.22A
Protocols
- Rsyslog
- MQTT / MQTTS
- SNMP V1/2
- IPV6
- RADIUS
- TACACS
- HTTPS
- Encrypted E-mail
Product Weight
0.4 Kg (.88 Lbs)
Temperature Range
-35°C to +80°C (-31°F to +176°F)
