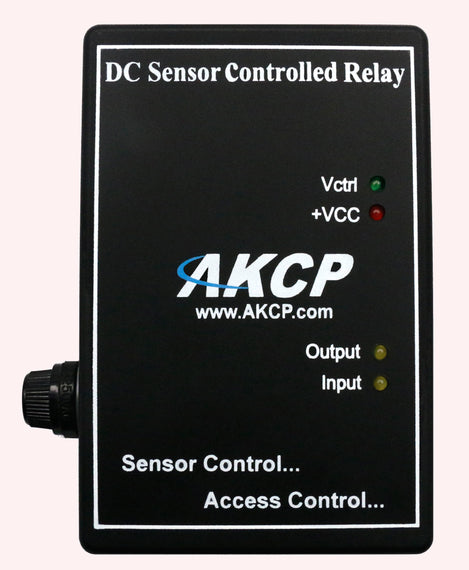

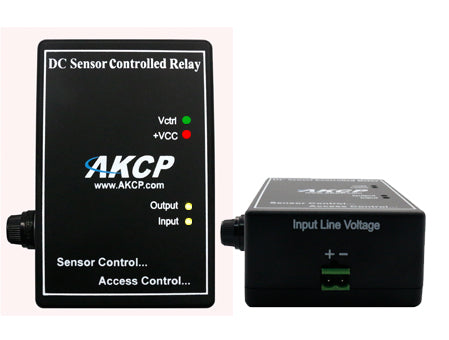

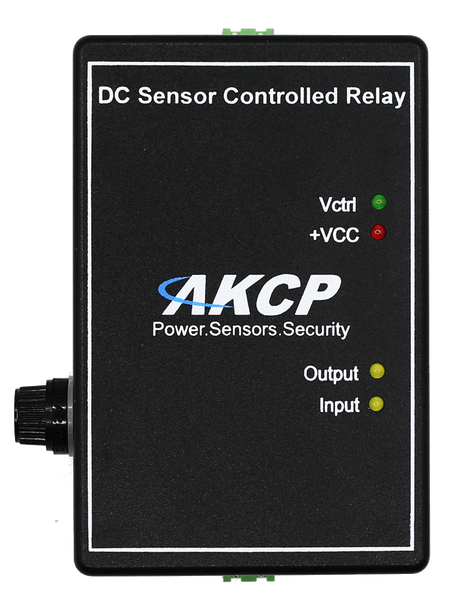

Sensor Controlled Power Relay: Normally Open - DC

$133.39

Regular price: $145.00

5.0 stars 5.0 (1) See customer reviews

SKU: GC-AK-PRB00-DC-NO

MPN: PRB00-DCO

Manufacturer: AKCP Co Ltd.

Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the continental US

Relay Type

Select Power

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Get 20% off on Normally Closed with AC110 option while supplies last.



Authorized North America Distributor Stamp

The Sensor Controlled Power Relay allows you to remotely control the electrical power supplied to a device. The relay can also provide automatic responses to sensor alerts and trigger responses such as turning on a fan when the room temperature rises to a set level.

Set-up is easy and works with any of the intelligent sensorProbes or securityProbes controllers. The sensor can be placed up to 1,000 feet from the controller using standard CAT5 cable (5 ft cable included).

The Sensor Controlled Relay provides 1 high-power SPDT 5V relay with the maximum load up to 10A for 220 and 110 VAC. It includes Metal Oxide Varistors (MOVs) and Snubber circuits to protect the open contacts of the relays from the high voltage spikes or noise transients. It monitors the power & load and accepts a control signal which is sent from the sensorProbe. Status of the Sensor Controlled Relay is reported by 4 LEDs on the board. Remote monitoring of the status is available using SNMP traps, web interface, e-mail and SMS.



Order Summary



SKU

Power

Relay Type

Manufacturer Part # (MPN)

GC-AK-PRB00-AC110-NC

Sale 20% off
AC110
Normally Closed
 PRB00-AC110
GC-AK-PRB00-AC110-NO
AC110
Normally Open
 PRB00-AC220
GC-AK-PRB00-AC220-NC Discontinued
AC220
Normally Closed
 PRB00-DC
GC-AK-PRB00-AC220-NO
AC220
Normally Open
 PRB00-DC
GC-AK-PRB00-DC-NC Discontinued
DC
Normally Closed
 PRB00-AC220
GC-AK-PRB00-DC-NO
DC
Normally Open
 PRB00-AC110

Features

  • CAT5 Enabled sensor allows you to add up to 1000' of CAT5 cable to the sensor
  • Relay contacts rated at 15A/220VAC
  • Up to 2 Sensor Controlled Relays per sensorProbe2
  • Up to 8 Sensor Controlled Relays per sensorProbe8
  • Full auto sense including disconnect alarm
  • Metal Oxide Varistors (MOVs) and snubber circuit protect the open contacts of the relays from high voltage spike

Documents and Drivers

Documentation

AC Sensor Controlled Relay Datasheet

DC Sensor Controlled Relay Datasheet

AKCP Sensor Selection Summary

Specifications

Current

  • Carry Current: 16 A
  • Relay Max. Operating Current: 16 A

Dimensions

115 x 80 x 40 mm

Indicators LED

4 LEDs:

  • Relay status
  • Power Supply status
  • AC or DC Line Voltage status
  • AC or DC Load Voltage

Material

Contact Material: AgCdO

MPN

PRB-AC110, PRB00-AC220, PRB00-DC

Power

Relay:

  • Max. Switching Capacity 4,000 VA, 480W with Resistive
  • Load 2,000 VA, 240W with Inductive Load (P.F=0.4)
  • 15Amp Fuse 380 VAC, 125 VDC

Power Consumption

5V @ 200mA

Power Supply

Operates from a single +5 V DC power supply powered by the sensorProbe or securityProbe

Temperature Range

-40ºC to 85ºC (-40ºF to 185ºF)

Voltage

  • Input: 110 – 220 VAC
  • Output: 110 – 220 VAC
  • Relay: Max. Operating Voltage 380 VAC, 125 VDC
