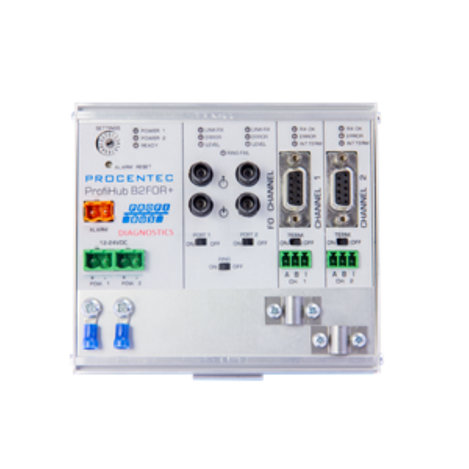

ProfiHub B2FOR+ - Fiber Optic Ring with RS485 Redundancy: Multi-Mode

$1,437.00

Leave a review

SKU: GC-PB-PROFIHUB-B2-FOR-MM

MPN: 17230

Manufacturer: Anybus Diagnostics

Stock Status: In stock

Delivery: Ships same or next business day
Qualifies for Free shipping to the continental US

Mode

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

The ProfiHub B2FOR+ can be used to create Fiber Optic Rings for PROFIBUS networks while supporting RS485 cable redundancy at the same time. This capability is useful for PROFIBUS applications requiring redundancy and high-availability. Status can be remotely monitored via ComBricks web browser.


Fiber Optic Rings
This PROFIBUS DP RS485 copper cable to Fiber Optic Link module is available in a Multi-Mode option or a Single-Mode option. Multi-Mode allows for 5 km fiber optic cable lengths, while the Single-Mode allows for 50 km cable lengths. There is 1 Fiber Optic cable split into 2 ports.


Redundancy
There are 2 galvanic isolated RS485 copper PROFIBUS segments. Use these with other ProfiHubs or ComBricks to create redundant copper cable runs between the hubs.

Order Summary



SKU

Mode

Manufacturer Part # (MPN)
GC-PB-PROFIHUB-B2-FOR-MM Multi-Mode 17230
GC-PB-PROFIHUB-B2-FOR-SM Single-Mode 17240

Features

  • Create Multi-Mode or Single-Mode Fiber Optic Rings for PROFIBUS networks
  • 1 fiber optic channel split into 2 ports
  • 2 galvanic isolated channels
  • Supports cable redundancy

Documents and Drivers

Documentation

ProfiHub B2FOR+ Datasheet

ProfiHub B2FOR+ User Manual

Specifications

Cascading Depth

No limit

Certifications

CE, FCC

Channels

  • 1 Fiber Optic
  • 2 galvanically isolated RS485

Connector(s)

Screw terminals and DB9

Dimensions

128 x 111 x 28 mm

Enclosure

Rated IP 20

MPN

17230, 17240

Power Supply

Redundant 12 to 24 VDC

PROFIBUS Networks

  • Transparent for all PROFIBUS DP protocols
  • Suitable for PROFISafe and MPI
  • High integrity telegram tracking

Temperature Range

-25°C to +70°C (-13°F to 158°F)

Termination

Integrated

Transmission Speed

9.6 kbps to 12 Mbps (automatic detection)
