This product is discontinued and no longer available.

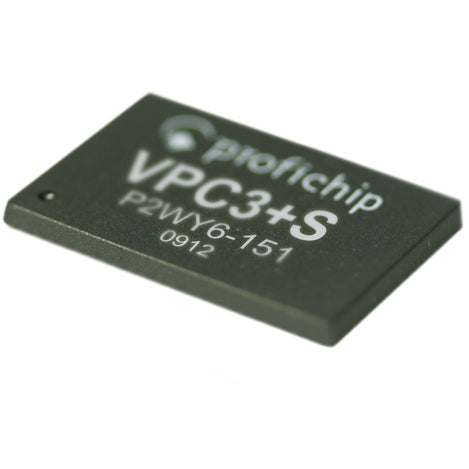

PROFIBUS-DP Slave Controller with Serial Interface - VPC3+S: BGA

SKU: GC-VPC3-S

MPN: PALF-2009 TR

Manufacturer: ProfiChip

Package

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Profichip’s VPC3+S is a communication chip with 8 Bit parallel, SPI or I2C Microprocessor interface for intelligent PROFIBUS slave applications. The VPC3+S handles the message and address identification, the data security sequences and the protocol processing for PROFIBUS-DP.

In addition the acyclic communication and alarm messages, described in DP-V1 extension, are supported. Furthermore the slave-to-slave communication Data eXchange Broadcast (DXB) and the Isochronous Mode (IsoM), described in DP-V2 extension, are also provided.

Automatic recognition and support of data transmission rates up to 12 Mbit/s, the integration of the complete PROFIBUS-DP protocol, 4 KByte communication RAM and the flexible processor interface are features to create state-of-the-art PROFIBUS slave applications.

The VPC3+S Chip is available in both Quad Flat Pack (QFP) and Ball Grid Array (BGA) Packages.

Order Summary



SKU

Package

Manufacturer Part # (MPN)
GC-VPC3-S (Discontinued) BGA VPC3+S-BGA48 / PALF2009

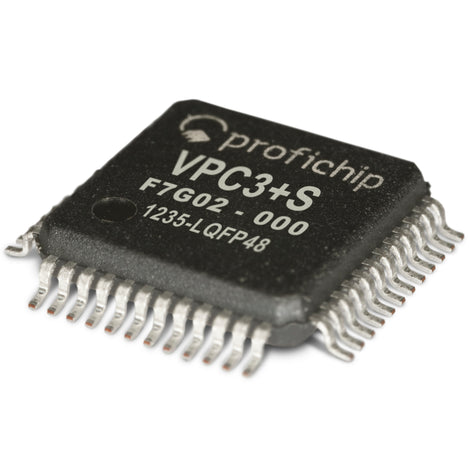

GC-VPC3-S-QFP (Discontinued) QFP VPC3+S-QFP48 / PALF2012

Documents and Drivers

Documentation

VPC+S Brochure

VPC+S Software Description

VPC+S User Manual

Specifications

Dimensions

6 x 8 mm

Interface(s)

  • SPI, IIC, parallel-Interface
  • HW - PLL for DP-V2 - ISOM

Memory

4kB communication RAM

MPN

VPC3+S-BGA48 / PALF2009 , VPC3+S-QFP48 / PALF2012

Pins

48 pin BGA 48 pin QFP

Protocols

Supporting PROFIBUS-DP-V0, DP-V1 and DP-V2 protocol

Software

  • Function and software compatible to VPC3+C and SPC3 from Siemens

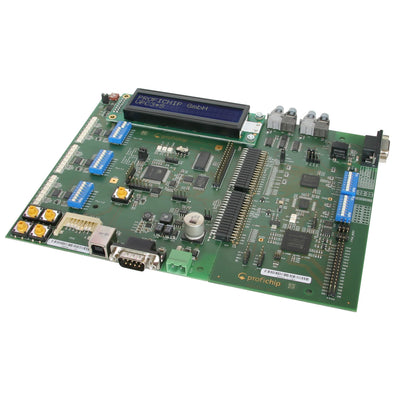

  • Software stack and Evaluation-Kit Available
