PROFIBUS DP Repeater - ProfiHub B1
PROFIBUS DP Repeater, Anybus Diagnostics, MPN: 101-00201A
Profibus DP Repeater

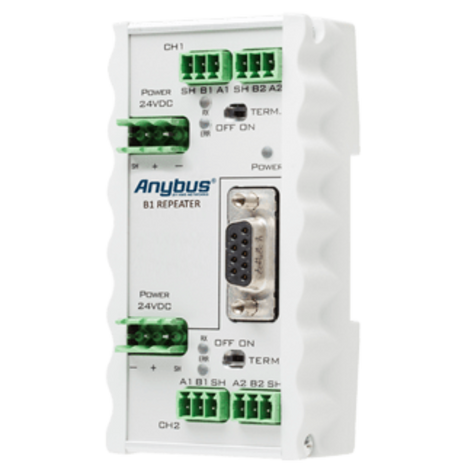

PROFIBUS DP Repeater - ProfiHub B1
Product Images

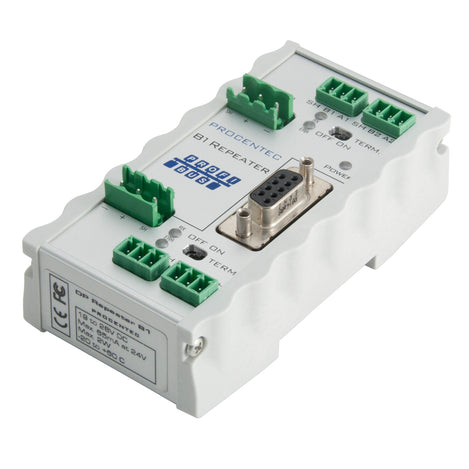

PROFIBUS DP Repeater - ProfiHub B1
$586.00
SKU: GC-PB-PROFIHUB-B1
MPN: 101-00201A
Manufacturer: Anybus Diagnostics
Stock Status: In stock
We Have You Covered
Product Information
Product Description
Advanced 1 channel repeater for Profibus DP networks, IP20 rated. Supports redundant power supplies and has DB9 connector for maintenance functions. The advanced 12 Mbps core of the B1 is identical as the ProfiHub; it can be cascaded unlimitedly and has increased signal strength. It does not have the frustrating short-circuit bug and the data is constantly monitored for glitches which are digitally filtered out. Every channel has on-board switchable termination and able to drive 31 devices.
The removable screw terminals of the PROFIBUS interface are pinned-out in a way that reversal mounting of the repeater does not impact existing wiring. A DB9 connector is provided for ProfiTrace or other maintenance/engineering tools.
Documents and Drivers
Documentation
ProfiHub B1 User Manual
Downloads
DWG Drawing
Specifications
Cable Length
1200 m (depends on transmission speed)
Cascading Depth
No limit in cascading
Channels
- 1 isolated channel (2 segments)
- 31 Devices per channel
Connector(s)
Removable screw terminals and 1 DB9 connector
Enclosure
IP20
Indicators LED
Bus status
Mounting
DIN Rail
MPN
101-00201A
Power Supply
Redundant power supply (19-28 VDC)
Protocols
- Transparent for all PROFIBUS DP protocols
- 9.6 Kbps to 12 Mbps (automatic detection)
- No address required
Switch Option
Integrated Termination (switches)
