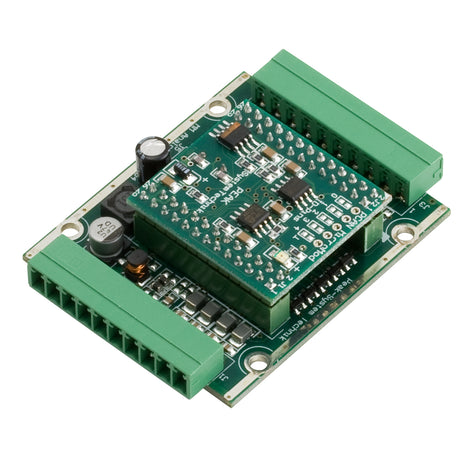

PCAN-MicroMod Digital D1 Module No Case

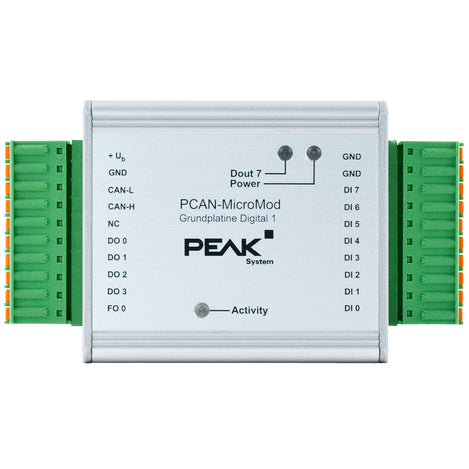

PCAN-MicroMod Digital D1 Module Top
PCAN-MicroMod Digital D1 Module
Product Images
PCAN-MicroMod Digital D1 Module
$289.00
SKU: GC-CAN-MICROMOD-D1
MPN: IPEH-002200
Manufacturer: Peak System Technik
We Have You Covered
Product Information
Product Description
The MicroMod D1 Module is a packaged version of the MicroMod CPU. Since only a limited set of the Micromod's inputs and outputs can be brought out to the terminal blocks, several packaged versions are available in different configurations. The Digital 1 (D1) Version has a specific set of digital inputs and outputs. (See Features Tab)
NOTE:
Since the MicroMod is programmed and configured over the CAN network using the free PC software provided, a PEAK PC to CAN interface is required (sold separately). We recommend the CAN-USB adapter as the simplest interface to use for this purpose.
Features
8 digital inputs with following properties:
- Pull-up or pull-down circuit selectable (in 3 groups)
- Voltage swing 5 to 18 V
- Schmitt trigger behavior, inverting
- Low-pass behavior
- Parallel connection of a frequency input (for each digital input 0 to 3)
- for alternative use (e.g. at fast changes of state, or at countings)
5 digital outputs with following properties:
- Digital 1: 4 low-side switches, max. 45 V, 0.35 A
- Digital 2: 4 high-side switches, max. 34 V, 1.1 A
- 1 fast low-side switch, max. 55 V, 0.75 A ("Frequency output")
- Short circuit protection
Documents and Drivers
Documentation
PCAN-MicroMod Digital D1 User Manual
Downloads
PCAN-MICROMOD Configuration
CAN Download Support
View the available Peak System downloads:
Specifications
Indicators LED
Power Supply & Digital Outputs
Input/Output
8 Digital Inputs:
- Pull-up or pull-down circuit selectable (in 3 groups)
- Voltage swing 5 to 18 V
- Schmitt trigger behavior, inverting
- Low-pass behavior
- Parallel connection of a frequency input (for each digital input 0 to 3) for alternative use (e.g. at fast changes of state, or at countings)
5 Digital Outputs:
- Digital 1: 4 low-side switches, max. 45 V, 0.35 A
- Digital 2: 4 high-side switches, max. 34 V, 1.1 A
- 1 fast low-side switch, max. 55 V, 0.75 A ("Frequency output")
- Short circuit protection
MPN
IPEH-002200
