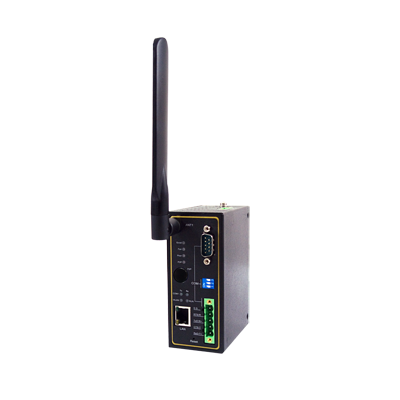

MW5501C - 1-Port Wireless Industrial Modbus Gateway

$459.00

Leave a review

SKU: GC-ATOP-MW5501C

MPN: 1P1MW5501C0001G

Manufacturer: Atop Technologies Inc.

Delivery: Ships within 8-9 weeks
Qualifies for Free shipping to the continental US

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

MW5501C is an Industrial wireless Modbus gateway providing a flexible platform to convert bi-directionally Modbus RTU/ASCII/TCP through wired and wireless Ethernet networks.  The ease-of-use configuration utility provided with Modbus Gateway can quickly select the hardware interface, and easily switch to the existing communication infrastructure.

This gateway supports:

  • IEEE802.11 b/g/n standards over 2.4GHz for Wireless connectivity
  • wired Ethernet through one RJ45 port
  • four most commonly used communication standards in Serial: RS-232/485 and 422 on one DSub-9 / 5-Pin Terminal Block Combo.

MW5501C has 1 combo serial port, 1 Ethernet port and Fast P2P file transfers.

Switching between Modbus Protocols
Modbus Gateway supports the standard Modbus protocol and is capable of converting any Modbus protocols between Modbus TCP, Modbus RTU, and Modbus ASCII for all supported hardware interfaces.

Modbus ID Routing
Modbus Gateway supports various types of hardware communication interfaces, Modbus protocol conversion and Modbus ID routing. These interfaces can integrate your existing and complex Modbus hardware configuration into a simple network that can be easily managed.

Features

  • Designed for 802.11 b/g/n networks, FCC (USA), ETSI (Europe) certified
  • 1 x 100BaseT(X) Fast-Ethernet RJ45 port
  • 1 Software-selectable RS-232/485/422 ports, combo serial port
  • Bi-Directional Modbus TCP/RTU/ASCII conversion from serial to Ethernet or wireless and vice-versa
  • Advanced features include Virtual ID remapping, VirtualCOM mode, exception handling and many others
  • Supports WiFi-Direct for Simple Peer Pairing
  • Web server / Utility configuration

Documents and Drivers

Documentation

MW5501C Series Datasheet

MW5501C Series User Manual

MW5501C Series Hardware Installation Guide

Specifications

Speed

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X)

Connectors

  • Network: 1x 10/100 BASE-TX RJ-45
  • Serial: D-Sub9 RS-232/422/485 software selectable (DB models) 5.08mm 5-Pin Terminal block
  • Serial: RS-232/422/485 sw selectable (TB models)
  • Wireless Antenna: SMA(R) Female
  • Power: 3-Pin 5.08mm Lockable Terminal Block

Baud Rate

110 ~ 921,600 bps software selectable

Software Protocols

IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv1,v2c,v3, SMTP, HTTP, DNS, NTP,
RADIUS, RFC2217, WPS, SysLog, Modbus TCP, Modbus RTU, Modbus ASCII

Wireless Security

WEP, WPA, WPA2, TKIP, AES, 802.1x

Parity

None, Odd, Even, Space, Mark

Data Bits

5, 6, 7, 8 software selectable

Stop Bits

1, 2 software selectable

Flow Control

None, Xon/Xoff, RTS/CTS (RS-232 only)

Wireless PCI-e Module

Atheros AR9382

Operating Frequency

WIreless: 2.4Ghz

Wireless Security

WEP, WPA, WPA2, TKIP, AES, 802.1x

Configuration

Atop Management Utility, Web UI, Telnet, Serial Console

VirtualCOM

Windows/Linux redirection software

Modbus - TCP Client

Maximum 16 Modbus TCP client connections, Modbus RTU/ASCII via VirtualCOM

Modbus - TCP Server

Maximum 64 Modbus TCP connections; Modbus RTU/ASCII via VirtualCOM or reverse Telnet

Modbus - RTU/ASCII

Maximum 16 devices per COM port.

Power

  • Input Voltage:  9-48 VDC
  • Input Current:  0.65 A @ 9 VDC
  • Power Consumption: Approximately 5.85 W (Max)
  • Reverse Polarity Protection

Enclosure

IP30 SPCC housing

Dimensions

47 mm x 110 mm x 90mm (1.85 in x 4.33 in x 3.54 in)

Weight

500g (1.1 lb)

Installation

DIN-Rail , Wall mount (optional kit)

Buttons

  • Reset button
  • WI-Fi Direct(P2P) button

Temperature

  • Operating: -10°C ~ 60°C (14°F ~ 140°F)
  • Storage: -40°C~85°C (-40°F~185°F)
  • Ambient Relative Humidity:  5%~95%, 55°C (Non-condensing)
