This product is discontinued and no longer available.

Mercury Multi-Protocol Diagnostic Tool Kit - Plus

Leave a review

SKU: GC-MERCURY-PLUS-KIT

MPN: 101-822220

Manufacturer: Anybus Diagnostics

We Have You Covered

Price Match delivery truck hand receiving items

30 day money back guarantee

*some exceptions apply

Product Information

Product Description

Authorized North America Distributor Stamp

The Mercury Kit Plus is a robust multi-protocol tool that is great for troubleshooting, maintenance, and monitoring of Industrial networks; such as Industrial Ethernet, PROFINET, and PROFIBUS. With the cross-platform software package called Osiris, you are able to gain valuable insight into the health and status of your networks, preventing unexpected downtime.

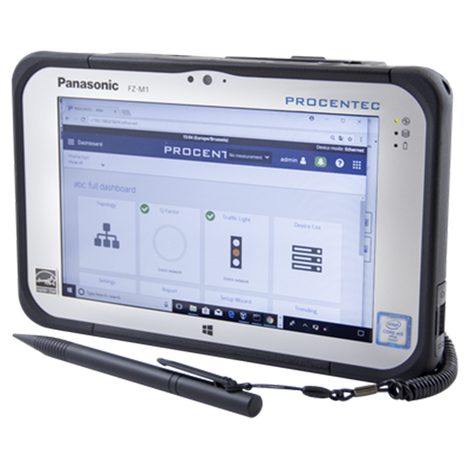

Designed for field work and maintenance, this lightweight tablet has an adjustable hand strap and is water and dust resistant for harsh environments. It can connect remotely or wirelessly with Wi-Fi and Bluetooth allowing for easy mobility.







Industrial Ethernet

With the same software as Atlas, the Mercury provides an easy to use diagnostic interface with customizable topology views and a quality score (Q-factor) of your network. It offers a clear overview and diagnostics of all devices and how they are connected to the network making it essential for facilities of mixed architecture or ones transitioning between networks. The data collected follows the NAMUR NE 107 standard and gives the option of exporting reports as CSV files.



PROFIBUS

When connected to a PROFIBUS network, the ProfiCore Ultra 2 interface works with the Osiris software to analyze and detect any possible faults within the network. Common problems like noise, reflections, and termination are easy to troubleshoot with the built-in oscilloscope showing a live view of the networks health. The device also offers current lists and reports on devices and their status.

The ProfiCore Ultra is licensed for use with the Mercury Kit Plus and is unable to connect with ProfiTrace software.

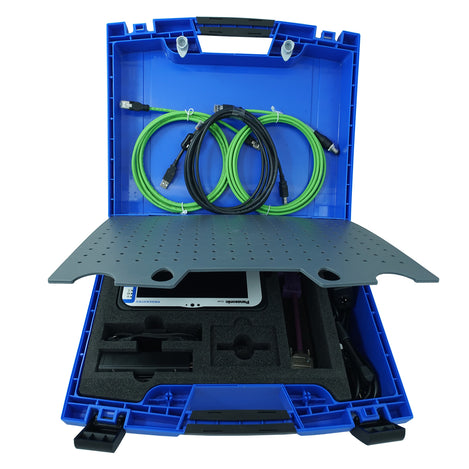

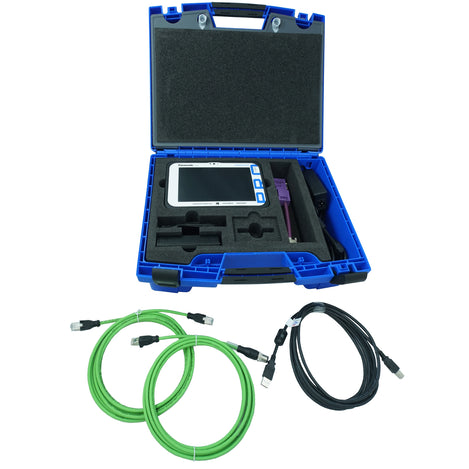

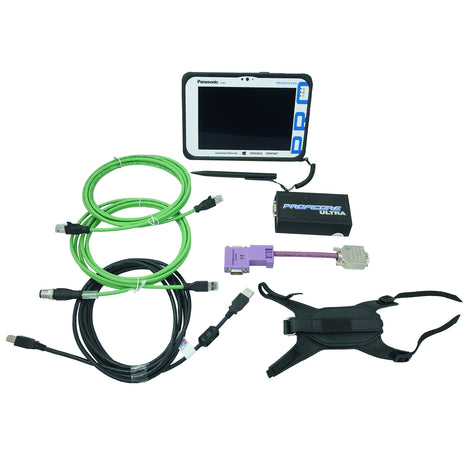

The Mercury Kit Plus Includes:



Qty

Kit Item
1 Mercury Rugged Tablet
1 Power Cord
1 360 Degree Hand Strap

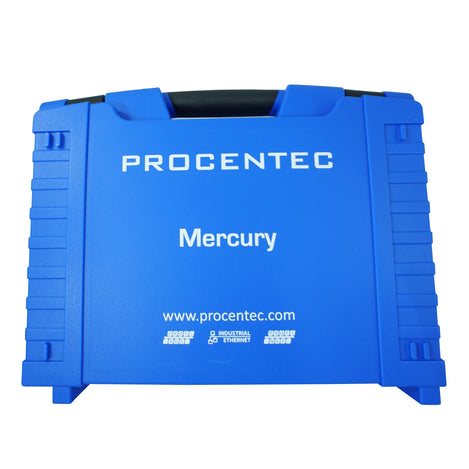

1 Carrying Case
1 RJ45 to RJ45 3 Meter Cable
1 RJ45 to M12 3 Meter Cable
1 USB Cable
1 ProfiCore Ultra 2
1 ProfiCore TAP Connectors
1 OSIRIS Software Standard Package (pre-installed and tested)

Features

Mercury Features:

  • Portable device
  • Wi-Fi and Bluetooth connected
  • Pre-installed software
  • Easy to use interface
  • Remote monitoring
  • Network topology

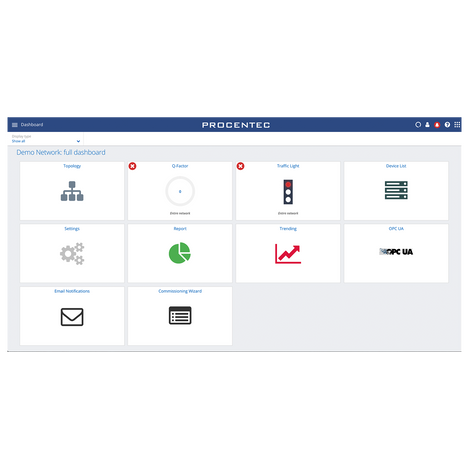

  • Customizable dashboard views
  • Traffic light feature


Features with Industrial Ethernet Networks:

  • Topology views – galaxy, tree, customized
  • Device information
  • Device connections, with NAMUR status
  • Network scoring mechanism


Features of PROFIBUS Networks:

  • Bus monitor for DP and PA with powerful statistics
  • Oscilloscope
  • Topology scan
  • Bar graphs
  • Reporting

Documents and Drivers

Documentation

Mercury Brochure

Mercury User Manual

Specifications

Connector(s)

RJ-45

Data Rate

10/100/1000 Mbps

MPN

101-821220

Protocols

ARP, ICMP, DCP, SNMP, PROFINET I&M0, PROFIBUS
