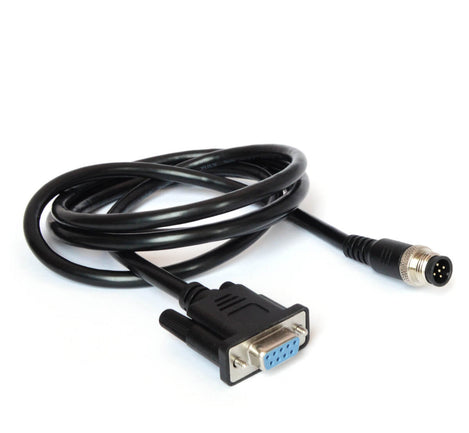

M12 to DB9 Cable Adapter (5-pin Connector, CAN bus)
M12 to DB9 Cable Adapter (5-pin Connector, CAN bus)
Product Images
M12 to DB9 Cable Adapter (5-pin Connector, CAN bus)
$60.00
5.0 stars 5.0 (1) See customer reviews
SKU: GC-CSS-DB9-M12-CABLE
MPN: #120 M12 (5-pin) Adapter
Manufacturer: CSS Electronics ApS
Stock Status: In stock
We Have You Covered
Product Information
Product Description
The DB9-M12 adapter cable is suited for use in most maritime vessels and in many industrial automation applications. The cable lets you connect your CANedge/CLX000 CAN logger directly to the CAN bus - providing access to the CAN bus, as well as providing input power/ground for your CAN logger.
Features
- MARINE: Suitable for NMEA 2000® maritime applications (boats, ships)
- CANOPEN: Suitable for CANopen applications (e.g. machinery)
- OVERMOLDED: Quality overmold ensures top flexibility & durability
- SOLID CABLES: Rugged quality 1.5m cable with 22 AWG (0.5 mm2) thickness
- STANDARD DB9: Fits our CAN loggers & all adapters (CiA 303-1 DB9 pinouts)
- 1Y WARRANTY: We offer a 1-year warranty on all our products
Specifications
Cable Length
150 cm
Connector(s)
9-pin D-sub (DB9) female to M12 5-pin (male)
Dimensions
Thickness: 22 AWG (0.50 mm2)
MPN
#120 M12 (5-pin) Adapter
Pins
Adapter DB9 Pins: In accordance with CiA 303-1
Product Weight
130G
Temperature Range
-20°C to +80°C (-4°F to +176°F)
