This product is discontinued and no longer available.

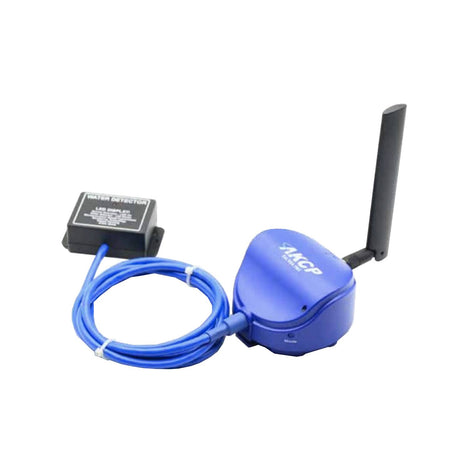

LoRa Wireless Water Sensor
LoRa Wireless Water Sensor
Product Images
We Have You Covered
Product Information
Product Description
The LoRa™ Water Sensor is equiped with an external LoRa antenna for maximized broadcasting strength. The advanced LoRa technology allows for reliable broadcasting up to 10 km with multiple data transfers per minute. The device easily pairs to the L-DCIM gateway for monitoring and tracking data as well as real-time alerts if water is detected.
The sensor is powered an external micro-USB power source with four (4) internal batteries for back-up support in case of power outages. The batteries are guaranteed a 10-year life-span when broadcasting every 15 minutes.
Features
- USB Powered with back-up batteries
- 10 year guaranteed battery life
- IP54 rated casing for all environments
- DIN rail, magnets, or wall mounting options
LoRa™ radio technology
- Increased signal penetration
- Frequent broadcasting
- Maximized signal distance
- "Listen before talk" to minimize packet collisions
Documents and Drivers
Documentation
LoRa Water Sensor Product Information
Specifications
Antennas
Di-Pole LoRa
Certifications
FCC Part15C, CE EN300220-2
Connector(s)
Micro-USB power supply
Dimensions
77 x 47 mm
Indicators LED
Sensor Mode
Measurement Accuracy
Able to measure distilled water
Measurement Range
Wet or Dry -20ºC to 60ºC (-4ºF to 140ºF)
Measurement Rate
Multiple readings per second
Mounting
DIN Rail, Wall Mount, Magnetic
MPN
LBWS-5
Power Consumption
12 mWatt
Power Supply
Micro-USB port with back-up internal batteries
Radio
- LoRa™ Radio
- 902-915 MHz
- Max TX Power +20dBm
Temperature Range
-35ºC to 80ºC (-31ºF to 176ºF)
Humidity
20% to 80% (non-condensing)
