LoRa Wireless Dry Contact Sensor
LoRa Wireless Dry Contact Sensor
Product Images
We Have You Covered
Product Information
Product Description

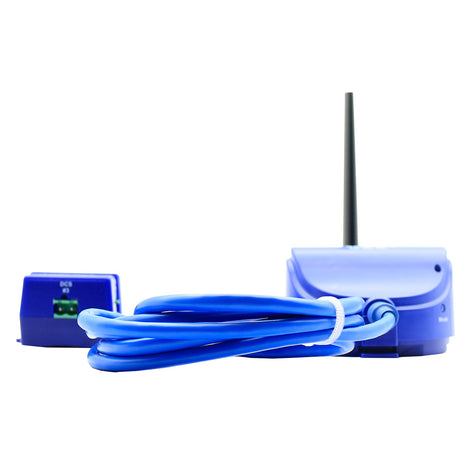

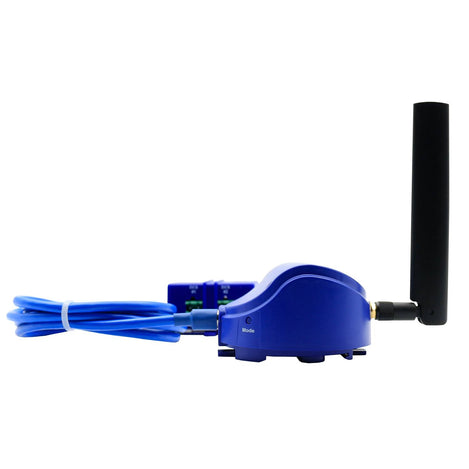

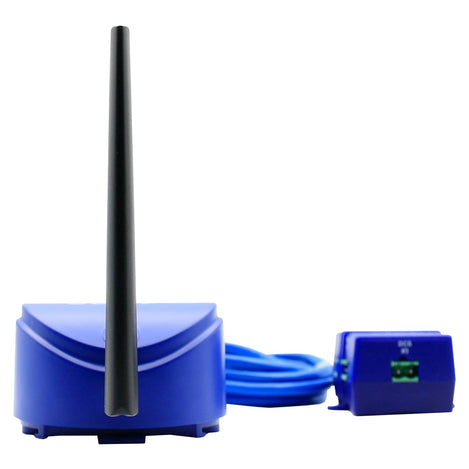

The LoRa™ Dry Contact Sensor offers 5 inputs to monitor third-party devices such as security alarms, fire alarms, or an Uninterrupted Power Supply (UPS). The external LoRa antenna, increases the distance for wireless broadcasting and instantly communicates any updates or alerts from the dry contact input.
Connect the Dry Contact Sensor to the L-DCIM gateway (sold separately) for tracking and monitoring over time. The AKCPro Software offers a customized desktop interface as well as tablet monitoring for technicians on the go.
For optimal placement of the device, it comes with a standard 5 Ft. cable between the base unit and contact inputs and offers various possibilities for mounting.
The device is powered by four (4) internal batteries and is guaranteed a 10-year life-span when broadcasting every 15 minutes. The device also provides an external micro-USB power source, leaving the batteries for back-up support.
Common Applications Include:
- Data Centers
- Pharmaceuticals
- Hospitals
- Warehousing
- Cold Storage
- Distribution Centers
Features
LoRa™ radio technology:
- Increased signal penetration
- Maximized signal distance
- "Listen before talk" to minimize packet collisions
- Frequent broadcasting
- 5 Ft. cable length for optimal sensor placement
- 5 dry contact inputs
- DIN rail, magnets, or wall mounting options
- Battery or USB Powered
- 10 year guaranteed battery life
- IP54 rated casing for all environments
Documents and Drivers
Documentation
LoRa Dry Contact Sensor Product Information
Specifications
Antennas
Di-Pole LoRa
Certifications
FCC Part15C, CE EN300220-2
Connector(s)
Micro-USB power supply
Dimensions
- LBDC5 Unit: 76.8 x 76.8 x 46.92 mm
- Connectors Case: 48 x 55.1 x 32.2 mm
- Di-Pole Antenna: 9.56 x 38.63 x 115 mm
Humidity
20% to 80% (non-condensing)
Indicators LED
Sensor Mode
Input/Output
- 5 Dry contact inputs
- Switch type dry contact input: open or close
- Edge counters
Mounting
DIN Rail, Wall Mount, Magnetic
MPN
LBDC5
Power Consumption
12 mWatt
Power Supply
Internal batteries or micro-USB port
Radio
LoRa™ Radio 902-915 MHz Max TX Power +20dBm
Temperature Range
-35ºC to 80ºC (-31ºF to 176ºF)
