This product is discontinued and no longer available.
LoRa Switch Type Sensor Adapter
LoRa Switch Type Sensor Adapter
Product Images
We Have You Covered
Product Information
Product Description

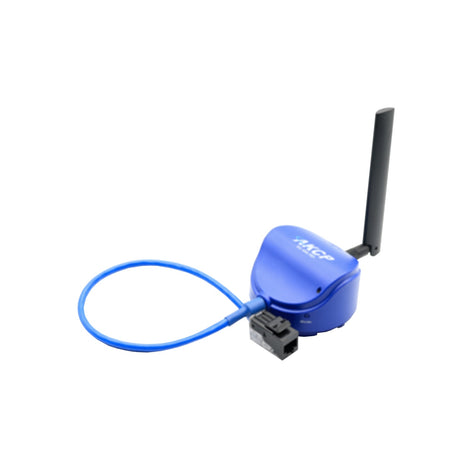

The LoRa™ Switch Type Sensor Adapter allows other sensors to utilize the wireless LoRa technology. The device can be connected to any AKCP switch output type sensor with the CAT5 cable. Once connected to the L-DCIM gateway, the data can be collected and monitored with real-time alerts on status changes.
The advanced LoRa technology is capable of broadcasting in low-signal areas up to 10 km in open space and 250 meters in buildings. The sensor is powered by an external micro-USB power source, with internal batteries for back-up support. The batteries are guaranteed a 10-year life-span and is only recommended as back-up in case of power outages.
Supported Sensors Include:
- Smoke Detector
- Security Sensor
- Vibration Detection Sensor
- Water Detector or Rope Water Detector
- Motion Detector
- AC voltage Detector
Features
- CAT5 cable with female RJ45 connector
- USB Powered with back-up batteries
- 10 year guaranteed battery life
- IP54 rated casing for all environments
- DIN rail, magnets, or wall mounting options
LoRa™ radio technology
- Increased signal penetration
- Frequent broadcasting
- Maximized signal distance
- "Listen before talk" to minimize packet collisions
Documents and Drivers
Documentation
LoRa Switch Type Sensor Product Information
Specifications
Antennas
Di-Pole LoRa
Cable Length
1 Ft.
Certifications
FCC Part15C, CE EN300220-2
Connector(s)
- Power Supply: Micro-USB power supply
- Sensor Connection: CAT5 cable with female RJ45 connector
Dimensions
77 x 47 mm
Humidity
20% to 80% (non-condensing)
Indicators LED
Sensor Mode
Mounting
DIN Rail, Wall Mount, Magnetic
MPN
LBSW
Power Consumption
12 mWatt
Power Supply
Micro-USB port with back-up internal batteries
Radio
- LoRa™ Radio
- 902-915 MHz
- Max TX Power +20dBm
Temperature Range
35ºC to 80ºC (-31ºF to 176ºF)
