J-Type or K-Type Thermocouple
J-Type or K-Type Thermocouple
Product Images
We Have You Covered
Product Information
Product Description

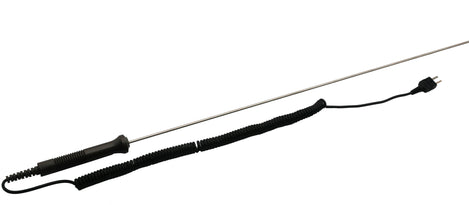

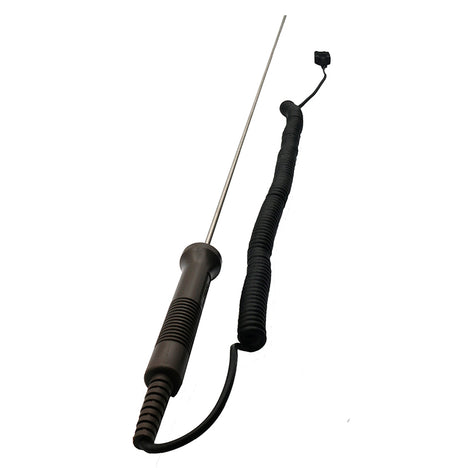

The AKCP thermocouple is perfect for use in heavy industries, such as petrochemical and metal processing. With measurements from -200ºC (-328ºF) up to 800ºC (1472ºF) it is also suited to those low temperatures found in cryogenics and medical applications.

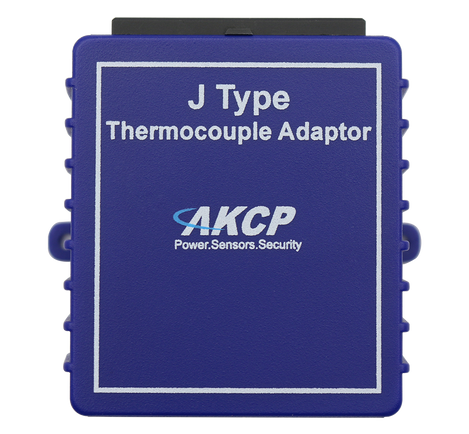

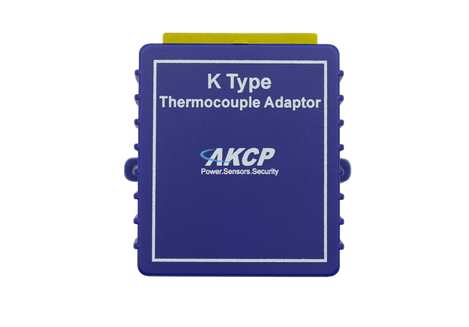

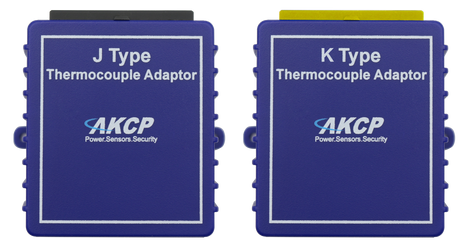

The thermocouple adapters are designed to integrate either the AKCP thermocouple, or a third party thermocouple with the securityProbe and sensorProbe+ base units. Available in either J or K type adapter it subscribes to the industry standard for thermocouples.
Thermocouples are typically used in heavy industry and cryogenics fields due to their accuracy and resistance to extremes of high and low temperatures. Setup is easy. Plug your thermocouple into the adapter, and then connect the adapter to an intelligent sensor port on the securityProbe or sensorProbe+ base unit (not included). A free 5ft CAT5 cable is supplied to do this setup. Once connected the securityProbe or sensorProbe+ recognizes the thermocouple automatically and configures the unit.
All the user needs to do is set the thresholds for high and low warning and critical levels.
Order Summary
SKU |
Thermocouple Type
|
Manufacturer Part # (MPN) |
|---|---|---|
| GC-AK-TCBJ | J-Type |
TCBJ |
| GC-AK-TCBK | K-Type |
TCBK |
Features
- Designed for use with AKCP J/K type thermocouple
- Plugs directly into the AKCP J or K type thermocouple adapter
- Compatible with industry standard J/K type thermocouples
- RJ-45 connection for easy and simple installation
- Full autosense including disconnect alarm
- Power source: powered by the sensorProbe. No Additional power needed.
- Power Consumption: Typical 7.80 mWatt, 1.56 mA
- Includes a free 5ft CAT5 cable
Documents and Drivers
Documentation
J-Type or K-Type Thermocouple Datasheet
Specifications
Cable Length
Maximum: Run length is 100 feet (30 meters) with approved low capacitance shielded cable or UTP
Communications cable
- RJ-45 jack to sensor using UTP CAT5e/6 cable
- Plugs directly into the AKCP J or K type thermocouple adapter
Dimensions
Adaptor: 56 x 55 x 33.3 mm (2.20 x 2.16 x 1.31 in)
Sensor (sheath diameter): 0.61m x 4.5mm (.02 x .18 in)
Measurement Accuracy
sensorProbe+ series and securityProbe series
- ±5°C
- ±9°F
Measurement Range
- K Type: -200°C to +900°C (-330°F to 1650°F)
- J Type: -40°C to +750°C (-40°F to 1382°F)
Measurement Resolution
sensorProbe+ series:
- 0.1°C increments
- 0.2°F increments
securityProbe series:
- 0.5ºC increments
- 0.9ºF increments
Power
Powered by the base units. No additional power needed
Power Consumption
Typical 7.80 mWatt, 1.56 mA
