$10,200.00
IO-Link Device Tester
IO-Link Device Tester
Product Images
Delivery: Ships within 7-14 business days
Qualifies for Free shipping to the US
We Have You Covered
Skip To Footer
Product Information
Product Description
Every manufacturer of an IO-Link compliant device needs to issue a manufacturer declaration of compliance. This requires that numerous tests that are defined in the IO-Link test specification need to be executed. This device tester simplifies the execution of many of these tests in particular protocol compliance tests.

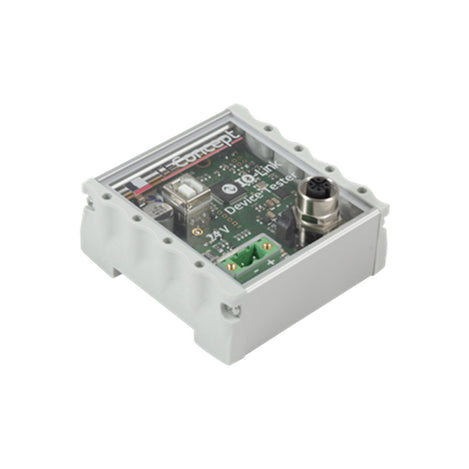

The TEConcept Device tester is powered by an external 24V power supply, it is controlled via an USB port and it offers a standard M12 connector to connect the devices under test "DUT".

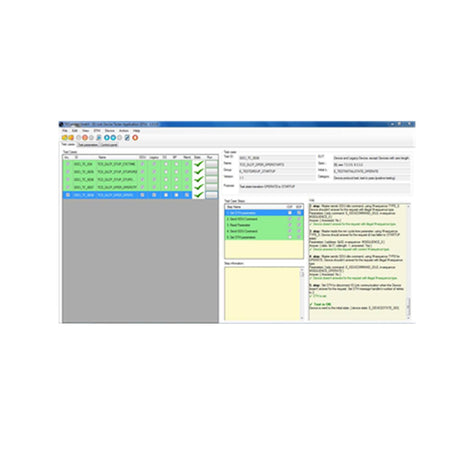

A PC-software tool asks for the IODD of the DUT and automatically adjusts most of its test procedures parameters according to the capabilities of the DUT. The test cases are defined by an XML-files that are accessible by the user. Additional tests like checking the validity ranges of device specific parameters can easily be added by the user by adding test procedures in xml.
The Device Tester offers:
- Graphical User Interface
- Test Report generation in PDF format
- Selectable Test Case execution
- Step-By-Step test report
- Hex-Trace of IO-Link communication
- Log- and Trace File export
- Additional Control Feature (USB-Master)
- Session store/restore (project file)
- Firmware update feature
Features
- Complies to IO-Link Test specification V1.1.2
- Approved by IO-Link Quality Working Group
- External 24V/300mA power supply
- M12 IO-Link master connector
- USB control
- Extendible with customer specific test cases
- Window based user interface for specification of most needed customer specific test cases
Documents and Drivers
Documentation
IO-Link Device Tester Datasheet
Specifications
Connector(s)
M12 IO-Link master connector
Included in Box
- Device Tester Box
- 24V power supply
- Device Tester PC tool (Windows based)
- Test Case Creator Tool
Interface(s)
Windows Based
Mounting
DIN-rail
MPN
ITO-CTE-DTML
Power Supply
External 24V/300mA
