HP-25 PROFIBUS Cable Tester
HP-25 PROFIBUS Cable Tester
Product Images
Stock Status: In stock
We Have You Covered
Product Information
Product Description

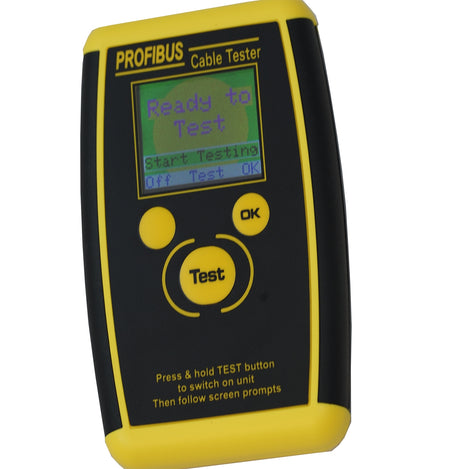

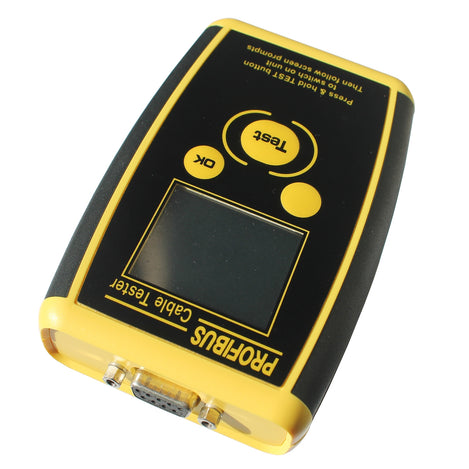

The HP-25 PROFIBUS Cable Tester is a handheld device that detects the most frequently found faults when cabling PROFIBUS DP networks. The HP-25’s screen indicates any found faults with colors to help quickly identify problems, or the lack thereof.
The HP-25 Cable Tester is able to detect:
- Open lines
- Short circuits between green and red A & B wires
- Short circuits between A or B and the shield/screen
- Crossed connections of the A & B wires
The unit can also be used to check for the correct orientation of the IN and OUT cables in PROFIBUS DP connectors. The correct orientation of the cables is critical when using the connector’s Terminating Resistor Switch for troubleshooting purposes.

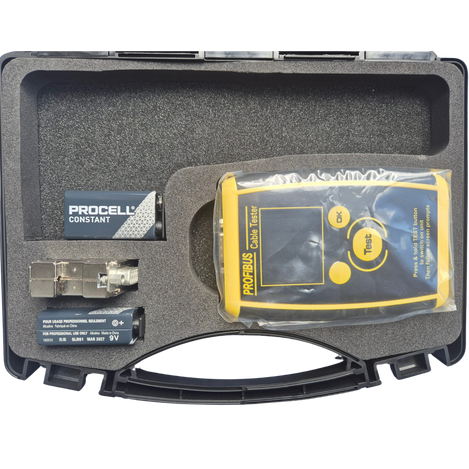

Package Contents :
- HP-25 base unit
- Remote plug
- 9V battery
- Tone detector
- Carrying case
Documents and Drivers
Documentation
HP-25 PROFIBUS Cable Tester Datasheet
HP-25 PROFIBUS Cable Tester Quick Start Guide
Specifications
Certifications
CE EMC emission and susceptibility
Current
4 to 12 mA
Dimensions
- Complete Package: 11.8 in x 7.5 in x 3.3 in
- HP-25 Cable Tester: 4.6 in x 3 in x 0.9 in
- Tone Detector: 7.8 in x 1.9 in x 1.2 in
- Cable End Test Plug: 1.8 in x 1.2 in x 0.6 in
- Battery (PP3): 1.9 in x 1 in x 0.6 in
Display
Front panel color display
MPN
HP-25
Power Supply
9V PP3 Battery
Product Weight
- Complete Package: 750 g
- HP-25 Cable Tester: 168 g
- Tone Detector: 122 g
- Cable End Test Plug: 20 g
- Battery (PP3): 45 g
