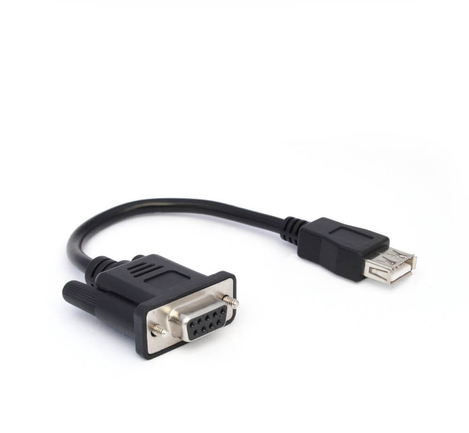

DB9-USB Power Adapter Cable
DB9-USB Power Adapter Cable
Product Images
DB9-USB Power Adapter Cable
SKU: GC-CSS-DB9-USB-PWR-CABLE
MPN: #85 DB9-USB Power Adapter Cable
Manufacturer: CSS Electronics ApS
We Have You Covered
Product Information
Product Description

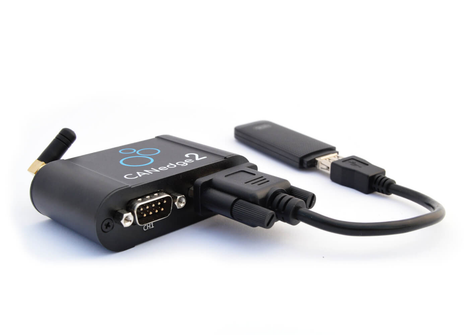

The adapter lets you power a 3G/4G hotspot with the CANedge2 - with no need for a separate USB power supply.
The CANedge2 can be pre-configured with the name/password of the 3G/4G USB hotspot, enabling the device to push log files to your server via 3G/4G.
Further, the 5V power output from the CANedge2 can be turned on/off in the configuration (incl. via over-the-air updates).
Note: The adapter simply parses power to the hotspot - the CANedge2 connects to the 3G/4G router via WiFi.
Features
- EASY 3G/4G: Power a USB 3G/4G hotspot via the CANedge2 2nd port connector
- COMBINE: Combine with DB9-Y-splitter to also log data via the 2nd port
- OTA CONTROL: Turn the 5V output on/off over-the-air - e.g. to toggle warning lamp
- EXTEND: Use DB9-extension cable to position 3G/4G hotspot for better signal
- OVERMOLDED: Overmold quality adapter cable with 22 AWG (0.5 mm2) thickness
- SOLID LOCKS: DB9 screw locks ensure a solid connection
Specifications
Cable Length
20cm
Connector(s)
9-pin D-sub (DB9) female to USB A female
Dimensions
Cable Thickness: 22 AWG (0.50 mm2)
MPN
DB9-USB Power Adapter Cable
Power Supply
The CANedge2 provides a configurable fixed 5V supply output
Product Weight
40g
Temperature Range
-20°C to +80°C (-4°F to +176°F)
