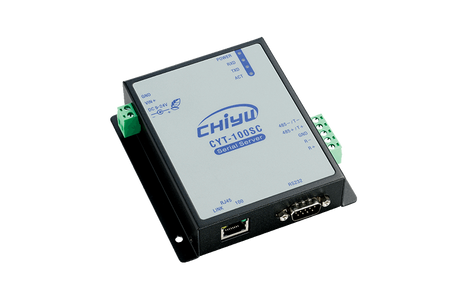

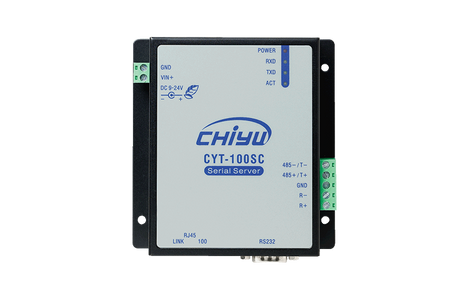

CYT-100SC Serial RS485/RS422/RS232 to TCP/IP Converter
CYT-100SC Serial RS485/RS422/RS232 to TCP/IP Converter
Product Images
CYT-100SC Serial RS485/RS422/RS232 to TCP/IP Converter
$79.00
SKU: GC-CYT-100SC
MPN: CYT-100SC
Manufacturer: Chiyu Technology
Delivery: Ships within 7-14 business days
Free shipping to the continental US on orders over $100
We Have You Covered
Skip To Footer
Product Information
Product Description
CYT-100SC is a RS232/RS485/RS422 converter for the integration of system and Ethernet management, designed and applied to enable traditional industrial serial devices to access data and control devices through Ethernet (intranet or internet) Real time operation system and complete TCP/IP protocol enable CHIYU’s CYT-100SC powerful converter not only providing complete system with highly efficiency but also able to link with network. Easy to install and wire. The Web interface of CYT-100SC is simple, easily to operate, and without operation system limitation.
Features
CYT-100SC support 4 kinds of connection:
- TCP server
- TCP client
- UDP
- Real com
- DHCP Server includes IP address, default getaway IP and DNS server
- Support PPPoE
- Support Dynamic DNS
- Auto detecting 10/100 M Ethernet
- Data access or management on CYT-100SC through various operation system of IE , Netscape browser
- Back up and store file system parameters
- Encrypted backup file
- Over Voltage protection on Serial port
- Can be mounted on DIN-Rail
- Automatic alerts for status and connection monitoring
Documents and Drivers
Documentation
CYT-100SC Installation Guide
CYT-100SC Product Catalogue
CYT-100SC Web User Manual
Specifications
Certifications
FCC B, CE B
Communication
- Port: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Baud rate: 1200bps ~ 230.4 kbps
Connector(s)
DB9 (Male) / RJ-45 / 2 RS-485 / 4 RS-422
CPU
16 Bits, 100MHz
Dimensions
106.5 (Include ear loop) x 115 x 28 mm
Ethernet
10 / 100Base-T / Tx1, Automatic MSI / MDI-xport
Humidity
5%~ 80%RH
Memory
256K Flash & 2M SDRAM
MPN
CYT-100SC
Power
DC 9V ~ 24V
Power Consumption
500mA (9V)
Product Weight
315 g
Security/Protection
- Surge Protection: Serial port 15 KV ESD
- Magnetic protected: Ethernet port 1.5 KV
Temperature Range
- Operation: 0°C to 55°C (32°F to 131°F)
- Storage: -20°C to 75°C (-4°F to 167°F)
Watchdog Timer
System halt prevention
