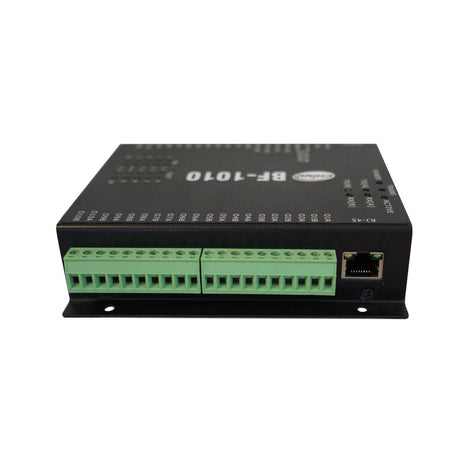

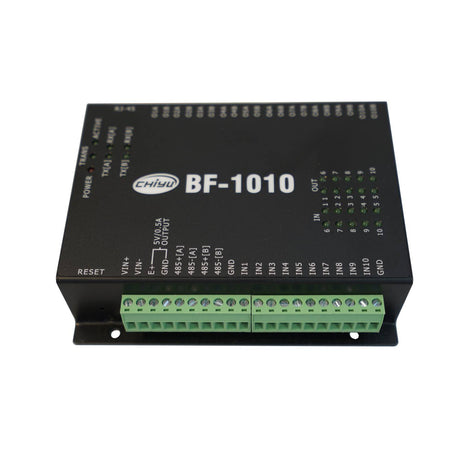

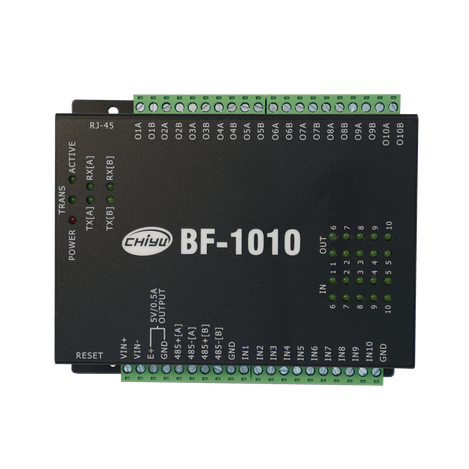

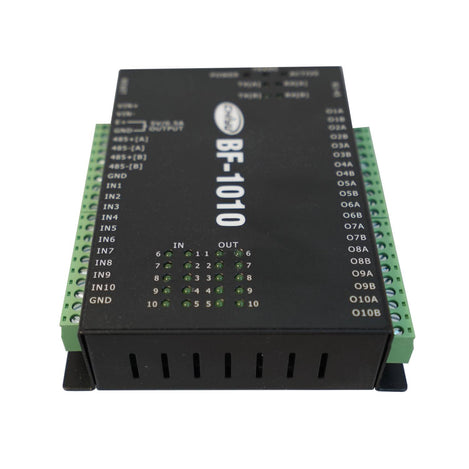

BF-1010 - Digital I/O Controller
BF-1010 - Digital I/O Controller
Product Images
BF-1010 - Digital I/O Controller
$180.00
SKU: GC-BF-1010
MPN: BF-1010
Manufacturer: Chiyu Technology
We Have You Covered
Product Information
Product Description
BF-1010 is a digital input/output controller with 10 sets of DIO. It can control DIO remotely through TCP / IP communication. The real-time operating system and the complete TCP / IP protocol makes this DIO controller a sound and efficient system to connect your device to the network. This DIO controller is easy to install and establish a network connection. The BF-1010's web setting interface is not only easy to operate but also has no operating system platform limitations.
The BF-1010 is designed to monitor digital inputs and remotely control digital outputs. Digital inputs such as panic button, temperature sensor, door sensor and others can be monitored. Remotely control digital outputs such as a siren, alarm, light, and fan.
Trigger events can be setup between terminals thru TCP/IP. For example:
- If temperature in the server room is too high, trigger a security office's alarm and also the server room's air conditioner.
- If humidity in green house is low, trigger a water spray and if air quality is low, also trigger air cycling.
Features
- Standalone Access Controller
- Sub-Controller, Dummy Reader modes
- Fingerprint / Card / Fingerprint + Card verification mode
- Optical fingerprint sensor module
- Proprietary software (SoMac) support
- 10 Digital Inputs And 10 Digital Outputs
- Monitor Digital Input: Panic Button, Temperature Sensor, Door Sensor,...etc.
- Remote Control Outputs : Siren, Alarm, Light, Fan
- Report E-map monitoring and email alert
- Master & Slave structure (Max 30 DI and 30 DO)
- Sensor text overlay (BF1010 DIO controller with temperature / humidity / CO2 sensors, shown real room status from sensors)
- Alarm alert (screen alerts from events - unregistered user, door open too long)
- Setup trigger events between terminals thru TCP/IP
Documents and Drivers
Specifications
CPU
16bit / 100MHz
Data Bits
5, 6, 7, 8
Humidity
Operating: 5% ~ 85%RH
Interface(s)
- Ethernet: 10/100 Base-T, Half/Full duplex, Auto Cross Over, 1.5KV magnetic protected
- 10 Digital Inputs isolated, 2500VDC, overload protection, 70VDC Dry Contact
- 10 digital ouputs isolated, 2500VDC, contact rating AC: 120V@0.5A, DC: 30V@1A
Memory
256 KB ROM & 1 MB SDRAM
MPN
BF-1010
Operating System
Windows XP / 2000 / NT / 95 / 98, Linux, UNIX
Operation Modes
- Support TCP / UDP Server, Client mode
- Bulit-in HTTP server for set up and remote management thru browsers
- Support system backup and restore
- Support Windows 95 / 98 / ME / NT / 2000 / XP / 2003 Virtual COM drivers
Parity
None, Even, Odd, Mark, Space
Power
DC 9 ~ 30 V, 500 mA
Protocols
TCP, IP, UDP, Telnet, ARP, DHCP, ICMP, SMTP, PPPoE, HTTP, UNIX
Security/Protection
User name & Password protected for web management
Serial Interfaces
2 ports - RS485 screw terminals
Stop Bits
1, 2 Flow Control; RTS / CTS, XON / XOFF
Switch Option
Switching time: 10msec
Temperature Range
- Storage: -20°C to +75°C (-4°F to +167°F)
- Operating: 0°C to +55°C (32°F to +131°F)
Watchdog Timer
System protection
