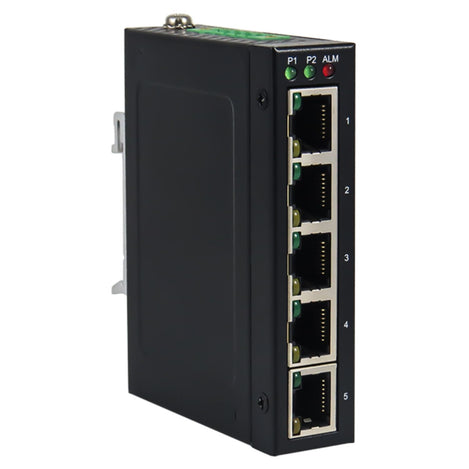

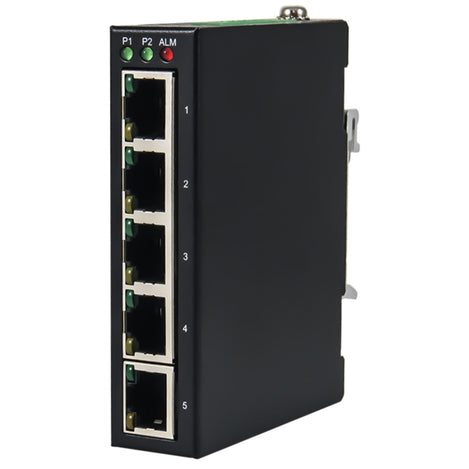

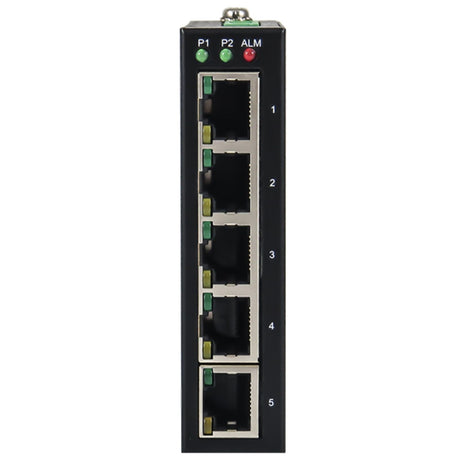

ATOP EHG3305 - Unmanaged Fast Gigabit Switch 5-Port Slim-Type

$184.00

SKU: GC-ATOP-EHG3305
MPN: 1P1EHG33050001G
Atop Technologies Inc.

Leave a review

Qualifies for free shipping to the continental US

Stock Status: In stock

Delivery: Ships same or next business day

Product Description

EHG3305 has 5 RJ-45 ports and is designed to work in an industrial environment, such as in hazardous locations that comply with CE, FCC and UL standards. The slim design is useful for  applications with limited cabinet space.

EHG3305 provides two redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs fail, the other live source acts as an automatic power backup.

Features
  • 5 x 10/100/1000 Base-T(X) RJ45
  • Support 10K Jumbo frames
  • Support 802.3zx Energy Efficient Ethernet for power savings
  • Support 802.1Q/p QoS, prioritizing critical packets such as PROFINET packets
  • Redundant DC power input
  • Operation temperature from -40~70°C (-40°F ~ 158°F)
  • DIN-Rail mounting
  • Slim type, SPCC housing

Documents and Drivers

Documentation

ATOP EHG3305 - Unmanaged Fast Ethernet Switch Datasheet

ATOP EHG3305 - Unmanaged Fast Ethernet Switch Hardware Installation Guide

ATOP Industrial Ethernet Switches Product Selection Guide

Specifications

Connector(s)

Lockable 5-pin terminal blocks for power input

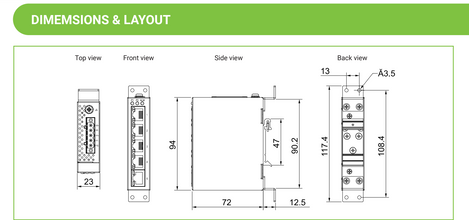

Dimensions

Slim type, 23 x 94 x 72 mm  (0.9 x 3.7 x 2.8 in)

Housing

IP30 protection, SPCC, Black

Humidity

5 to 95%, 55°C (131°F) (non-condensing)

Indicators LED

PWR1, PWR2, Alarm, ALM, LAN

Input Voltage

12 - 48 VDC

Mounting

DIN-Rail

MPN

1P1EHG33050001G

Temperature Range

  • Operating: -40 to 70°C (-40°F to 158°F)
  • Storage: -40 to 85°C (-40°F to 185°F)
