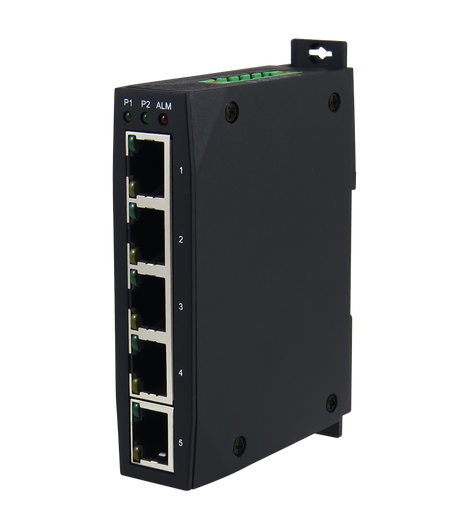

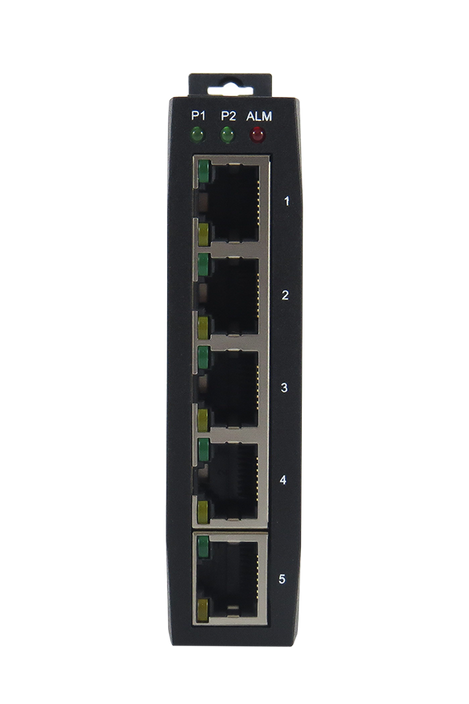

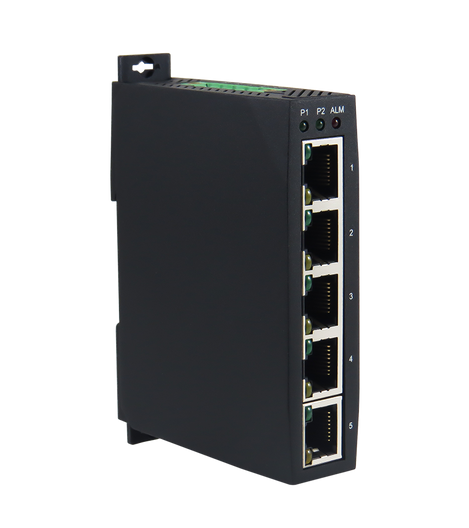

ATOP EHG3005 - Unmanaged Gigabit Ethernet Switch, 5-Port, Slim-Type
ATOP EHG3005 - Unmanaged Gigabit Ethernet Switch, 5-Port, Slim-Type
Product Images
ATOP EHG3005 - Unmanaged Gigabit Ethernet Switch, 5-Port, Slim-Type
$139.00
SKU: GC-ATOP-EHG3005
MPN: 1P1EHG30050001G
Manufacturer: Atop Technologies Inc.
We Have You Covered
Product Information
Product Description
EHG3005 with 5 RJ-45 ports and Fast Ethernet is for industrial applications. It is designed to work in the industrial environment, such as in hazardous locations. The slim design is perfect for applications with limited cabinet space.
The switch complies with CE, FCC and UL standards.
EHG3005 provides two redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs fails, the other live source acts as a backup to provide the EHG3005 with power automatically.
Documents and Drivers
Documentation
ATOP EHG3005 - Unmanaged Gigabit Ethernet Switch Datasheet
ATOP EHG3005 - Unmanaged Gigabit Ethernet Switch Hardware Installation Guide
ATOP Industrial Ethernet Switches Product Selection Guide
Specifications
Connector(s)
Lockable 5-pin terminal blocks for power input

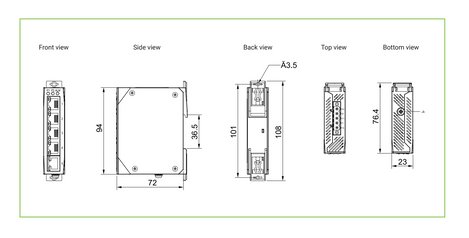

Dimensions
Slim type, 23mm x 94mm x 72mm
Housing
IP30 protection, Plastic, Black
Humidity
5 to 95%, 55°C (non-condensing)
Indicators LED
PWR1, PWR2, Alarm, ALM, LAN
Input Voltage
Dual Input Voltage: 12 - 48 VDC
Mounting
DIN-Rail
MPN
1P1EHG30050001G
Temperature Range
- Operating: 0°C to 60°C (32°F to 140°F)
- Storage: -20°C to 70°C (-4°F to 158°F)
