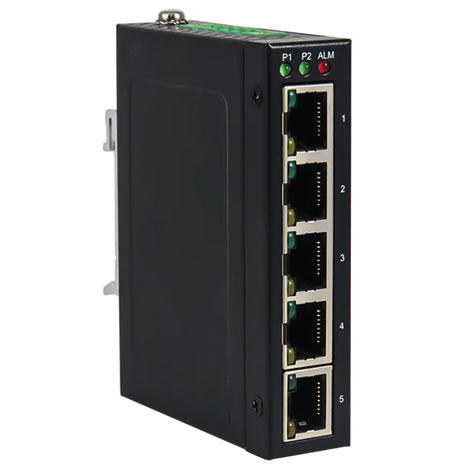

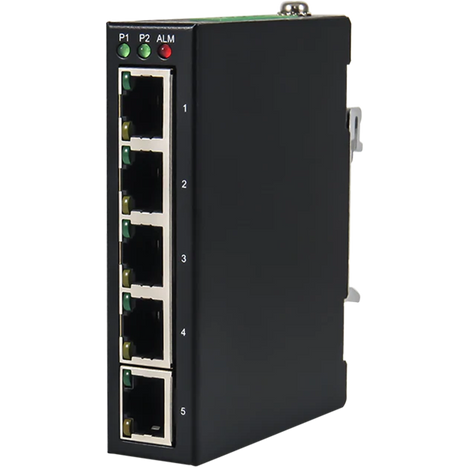

ATOP EH3305 - Industrial Fast Ethernet Switch 5-Port Slim-Type, SPCC
ATOP EH3305 - Industrial Fast Ethernet Switch 5-Port Slim-Type, SPCC
Product Images
ATOP EH3305 - Industrial Fast Ethernet Switch 5-Port Slim-Type, SPCC
$105.00
SKU: GC-ATOP-EH3305
MPN: 1P1EH330500001G
Manufacturer: Atop Technologies Inc.
We Have You Covered
Product Information
Product Description
The EH3305 has 5 RJ-45 ports for industrial applications. The slim design is useful for applications with limited cabinet space. It is designed with SPCC housing for use in industrial environments and hazardous locations.
The switch complies with CE, FCC and UL standards.
There are 2 redundant power inputs for connecting simultaneously to wide-range DC power sources. A failure on one of the power inputs will cause the other live source to act as an automatic backup.
Features
- 5 x 10/100 BaseT(X) RJ45 port
- Broadcast storm protection
- Support IEEE802.3/802.3u/802.3x
- Support 802.1q/p for VLAN tagging and class of service
- Auto MDI/MDI-X
- Redundant DC power inputs
- Operation temperature from -40 to 70°C
- DIN-Rail mounting
- Slim type, SPCC housing
Documents and Drivers
Documentation
ATOP EH3305 Datasheet
EH3305 Hardware Installation Guide
ATOP Industrial Ethernet Switches Product Selection Guide
Specifications
Certifications
- UL/IEC 62368-1, UL/IEC(CB) 60950-1
- FCC(EMI)
- CE(EMI)
- CE(EMS)
Connector(s)
Lockable 5-pin terminal blocks for power input

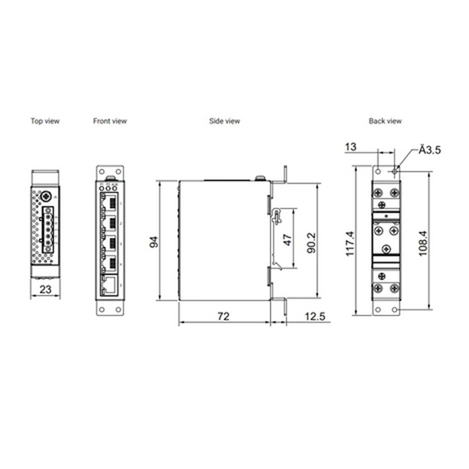

Dimensions
Slim type, 23mm x 94mm x 72mm
Enclosure
IP30 protection, SPCC, Black
Humidity
5 to 95%, 55°C (non-condensing)

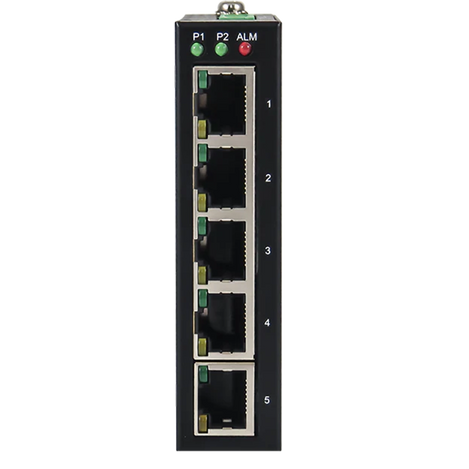

Indicators LED
PWR1, PWR2, Alarm, ALM, LAN
Mounting
DIN-Rail
MPN
1P1EH330500001G
Temperature Range
- Operating: -40 to 70°C (-40°F to 158°F)
- Storage: -40 to 85°C (-40°F to 185°F)
Voltage
Dual Input Voltage: 12 - 48 VDC
