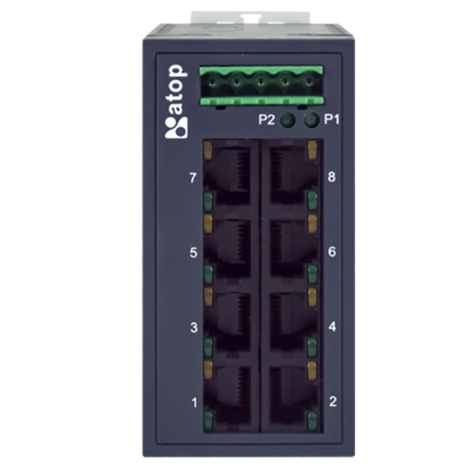

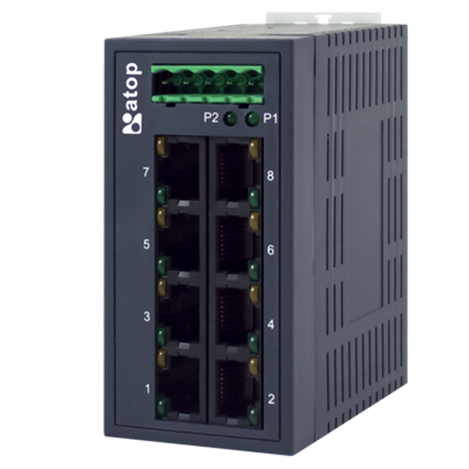

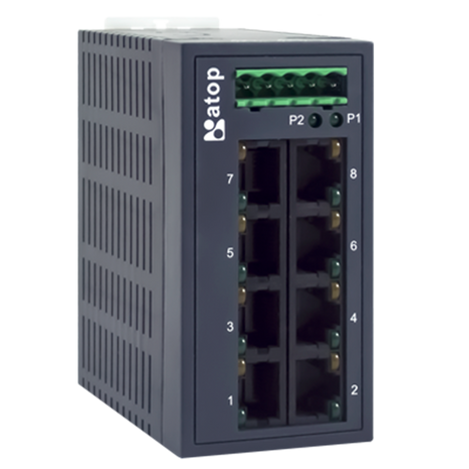

Product Images
ATOP EH2008 - Fast Ethernet Industrial 8-port 10/100 Unmanaged Switch
SKU: GC-ATOP-EH2008
MPN: 1P1EH200800001G
Atop Technologies Inc.
Qualifies for free shipping to the continental US
Stock Status: In stock
Product Description
EH2008 with 8 RJ-45 ports is a Fast-Ethernet switch for your industrial applications. It is designed to work in the industrial environment, such as in hazardous locations, where it complies with CE, FCC, UL, and RoHS standards.
EH2008 protects itself from receiving too many broadcast packets. During normal use, broadcast packets will be forwarded to all ports except the source port. However, it will discard broadcast or multicast packets if the number of those packets exceeds a threshold in a preset period of time.
EH2008 provides two redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs failure, the other live source acts as a backup automatically providing the EH2008 power needs.
Features
- 8x 10/100BaseT(X) (RJ45)
- Broadcast storm protection
- Supports IEEE 802.3/ 802.3u/ 802.3x
- 10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
- Redundant dual DC power inputs
- Operating temperature ranges from 0~60˚C
- Rugged plastic housing
- DIN-Rail or wall mounting ability
Documents and Drivers
Documentation
Atop EH2008 8-Port Unmanaged Fast Ethernet Switch Datasheet
Atop EH2008 8-Port Unmanaged Fast Ethernet Switch Hardware Installation Guide
ATOP Industrial Ethernet Switches Product Selection Guide
Specifications
Connector(s)
Removable 5-pin Terminal Block for power input
Dimensions
45.2mm x 90mm x 83mm (W x H x D)
Enclosure
IP30 protection, plastic housing
Humidity
5%~95% non-condensing
MPN
1P1EH200800001G
Power
Input: 9~48 VDC
Power Consumption
5.4 W Max
Product Weight
150g Max
Temperature Range
- Operating: 0°C to 60°C (32ºF to 140ºF)
- Storage: -20ºC to 70ºC ( 4ºF to 158ºF)
