Atlas2 Plus - Industrial Diagnostic Solution
Atlas2Plus front view, Anybus, MPN: 101-800341

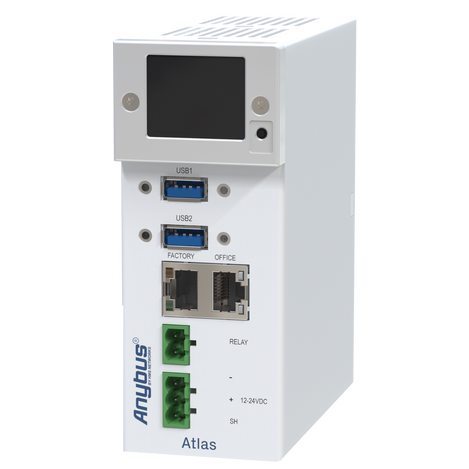

Atlas2Plus left view, Anybus, MPN: 101-800341

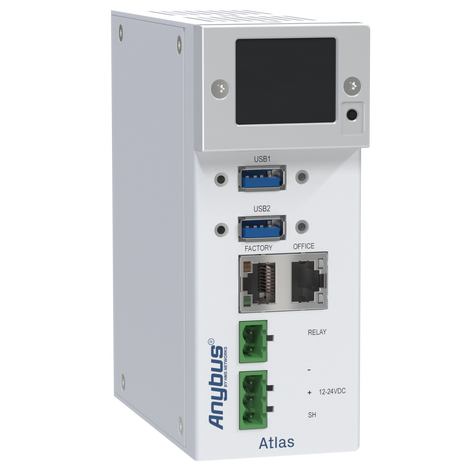

Atlas2Plus right view, Anybus, MPN: 101-800341
Atlas2 Plus - Industrial Diagnostic Solution
Product Images
Atlas2 Plus - Industrial Diagnostic Solution
$2,613.00
SKU: GC-PN-ATLAS-2P-OLED
MPN: 101-800341
Manufacturer: Anybus Diagnostics
Stock Status: In stock
We Have You Covered
Product Information
Product Description
Atlas2 is designed for the permanent monitoring of industrial networks with single or mixed architecture. This second-generation diagnostic tool, which is based on our popular Atlas unit, takes fault detection and diagnosis to a much higher level. Whether you’re using PROFINET, EtherNet/IP, EtherCAT and/or PROFIBUS, you’ll discover that Atlas2 gives you a much more connected and predictive approach to machine health monitoring and maintenance.
It still has all the original features that you’ve come to rely on to detect faulty installed devices, cable and firmware issues, and misconfigurations. But now it can recognize patterns in diagnostic data and learn from them, which gives you the ability to carry out predictive maintenance. Anticipating and preventing damaging network issues has never been so easy.
Explore our Atlas2 Plus webinars in the Documents & Drivers tab.
Order Summary
SKU |
Display Option |
Manufacturer Part # (MPN) |
|---|---|---|
| GC-PN-ATLAS-2P | No Display | 101-800340 (DISCONTINUED) |
| GC-PN-ATLAS-2P-OLED | OLED Display | 101-800341 |
Features
- Remote 24/7 monitoring for PROFINET, EtherNet/IP, EtherCAT and PROFIBUS
- Multiple versions of active and passive or active-only monitoring
- Self-learning machine with predictive fault-finding capabilities
- Dynamic graphical and hierarchical displays of a network’s topology
- Scoring mechanism and traffic light alert system for simple insight
- Optional LED display on the device itself for a quick overview
Documents and Drivers
Documentation
Atlas2 Plus Manual
Atlas2 Plus Brochure
Webinars
Introduction to Atlas (35 minutes)
Advanced Remote Monitoring for Industrial Ethernet Networks (58 minutes)
Specifications
Certifications
CE, FCC
Connection Modes
Up to 20 concurrent web clients
Connector(s)
RJ-45
Dimensions
- 130 x 52 x 117mm
- Wire: max. AWG 14 (max area 2.5 mm 2 )
- Ethernet Cable Length: max. 100 m
Display
Optional OLED (PM-OLED 1,45 inch, 160RGBx128 Dots, 262 Colors)
Enclosure
IP20 (IEC/EN 60529, DIN 40 050)
Humidity
98%
Indicators LED
- Green Power: Power Ok
- Blue: During detection of available updates on USB
- Green: All seem to be working correctly
- Orange: A situation is present which is important but not serious, user attention recommended
- Red: A serious problem is present in the network, user attention required
IP Addressing
- Factory: 192.168.0.10
- Office: 192.168.1.10
Memory
- 4 GB LPDDR4
- 16 GB eMMC storage
Mounting
35 mm (minimum width 65 mm)
MPN
101-800340, 101-800341
Ports
- 2x USB3.0; Type A; 900mA per port (one used for Atlas2 TAP)
- 1x USB2.0; Micro type B; 500mA (recovery channel)
Power
- Nominal: 10 W
- Maximum: 24W
Power Consumption
Max: 2A
Power Supply
- Pin -: 0 V
- Pin +: 12 to 24 VDC
- Pin SH: Shield
Processor
- NXP iMX8 QuadMax
- Passive Cooling (Fanless)
Product Weight
510 grams (excluding plug-able connectors, packing material)
Protocols
- Used: ARP, ICMP, DCP, SNMP, PROFINET I&M
- Supported: OPC UA, MQTT, PROFINET (detect only), PROFINET I&M0, Modbus TCP (detect only), Ethernet/IP (detect only)
Push Buttons
- Factory Reset
- System Recovery
Temperature Range
- Operating: -20ºC to 60ºC (-4ºF to 140ºF)
- Storage: -20ºC to 60ºC (-4ºF to 185ºF)
Voltage
12 to 24 VDC
