ALL-CAN300 - all vehicle external CAN adapter for FMM650

$170.00

SKU: GC-TTEL-ALLCAN300
MPN: CANCONP53U01
Teltonika Telematics

Leave a review

Qualifies for free shipping to the continental US

Delivery: Ships within 4-5 weeks

Product Description

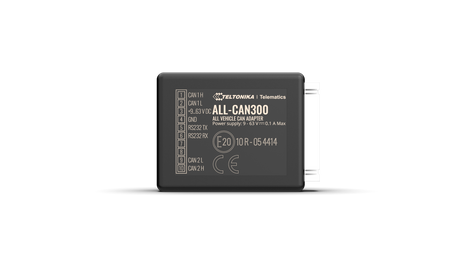

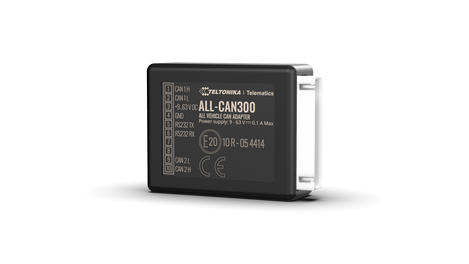

ALL-CAN300 - All Vehicle CAN Bus Data Acquisition Adapter

The ALL-CAN300 is a multi-platform CAN Bus interface adapter engineered for broad vehicle and machinery compatibility. Designed for direct integration with the vehicle CAN Bus, the adapter provides structured access to real-time telemetry data across a wide range of vehicle platforms supporting fleet telematics systems, asset management applications, and operational analytics pipelines.

Supported Vehicle & Equipment Platforms

  • Light vehicles (including BEV/EV platforms)
  • Heavy goods vehicles (HGV) / Trucks
  • Buses and coaches
  • Agricultural transport and machinery
  • Special transport — utility, forestry, and construction equipment

System Integration & Application

The ALL-CAN300 interfaces directly with the vehicle CAN Bus, delivering interpreted telemetry data suitable for integration into fleet management systems (FMS), telematics control units (TCUs), and third-party data platforms. Accessible data supports:

  • Operational cost reduction and fuel efficiency analysis
  • Driver safety monitoring and behavior reporting
  • Predictive and scheduled maintenance workflows
  • Emissions monitoring and environmental compliance reporting


Monitored Parameters

Available parameters are subject to vehicle make, model, year, and factory-fitted equipment configuration.

General Vehicle Parameters

Fuel & Energy Management

  • Cumulative fuel consumption
  • Fuel level — dashboard sourced (% or liters)

Odometry

  • Dashboard odometer value
  • Relative mileage counter (from adapter installation point)

Powertrain & Engine Data

  • Engine speed (RPM)
  • Engine operating temperature
  • Oil pressure and level status

Vehicle Dynamics

  • Wheel/vehicle speed signal
  • Accelerator pedal position (%)

Lighting Systems

  • Status monitoring — parking lights, dipped beam, full beam, front/rear fog lights

Body, Access & Safety

  • Door state monitoring — front left/right, rear left/right, trunk, and engine cover (hood)
  • Seat belt status — driver and passenger
  • Warning/fault indicators — check engine, lighting failure, low tire pressure, and additional system alerts

Emissions & Auxiliary Systems

  • AdBlue (DEF) tank level (dashboard-sourced)
  • Webasto auxiliary heating system status
  • Tachograph data — simplified TACHO output

Diagnostics & Extended Data

  • Additional parameters available dependent on vehicle platform and configuration

Electric Vehicle (EV) Parameters

  • Charging cable connection status
  • Charging cycle status
  • High-voltage battery state of charge (SoC)
  • Estimated vehicle range (battery)
  • Battery pack temperature

Trucks, Buses, Agricultural & Special Transport Parameters


Load & Structural Monitoring

  • Axle load distribution

Agricultural Machine Data

  • Harvesting duration
  • Harvested area coverage
  • Grain yield volume
  • Grain moisture content
  • Harvesting drum RPM
  • Mowing operational status
  • Threshing operational status
  • Grain tank fill status
  • Sprinkling system status

Hydraulic & Control Systems

  • Hydraulic system status
  • Joystick input status
  • Turn signal/light indicator status

Features
  • Read CAN data from light vehicles and trucks
  • Read CAN data from special transport
  • Supports more than 100 parameters

Documents and Drivers

Documentation

All-CAN300 Datasheet

CAN Adapters Flyer

ALL-CAN300 Suupported Vehicle List

Specifications

POWER

Input voltage range

9 - 63.5 V DC

Power consumption

  • At 12 V < 0.4 mA (Standby)
  • At 12 V < 23.5 mA (Working)
  • At 24 V < 0.33 mA (Standby)
  • At 24 V < 11.5 mA (Working)

PHYSICAL SPECIFICATION

Dimensions (L x W x H)

41 x 33 x 14.5 mm (1.6 x 1.3 x 0.57 in)

Weight

55 g (0.12 lb)

ENVIRONMENTAL REQUIREMENTS

Operational temperature without battery

-40°C ~ 85°C (-40°F ~ 185°F)

Operating humidity

Max 85% non-condensing

INTERFACE

LED indicator

1 status LED light
