$53.95
This product is discontinued and no longer available.
Suggested replacement: Xport Serial to Ethernet RJ45 Extended Temperature

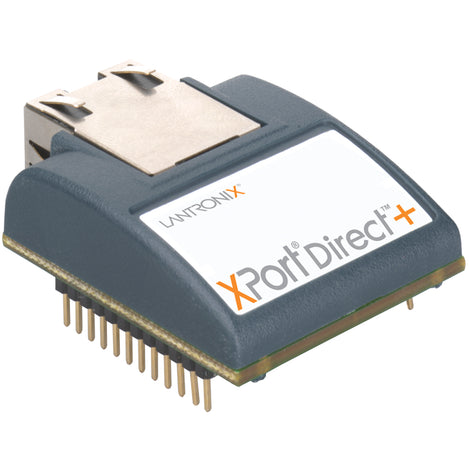

Xport Direct+ Serial to Ethernet Device Server
Xport Direct+ Serial to Ethernet Device Server
Product Images
Xport Direct+ Serial to Ethernet Device Server
SKU: GC-XPORT-DIRECT-PLUS
MPN: XPD1001000-01
Manufacturer: Lantronix
We Have You Covered
Skip To Footer
Product Information
Product Description
XPort Direct+ (XPort Direct Plus) is the same functionality as the small RJ45 XPort, but in the XPort Direct package. If you start out with the low cost XPort Direct and need the features of XPort then you can use the XPort Direct+ in the same socket.
If you need to add 10/100 Ethernet to your product and you have a serial port, now it can become an Ethernet port with no changes to your embedded software. The XPort Direct Plus is a device server that will take your serial data stream and convert it to Ethernet packets. A web server is also built in which allows you to design your own pages and interface with your product from the Internet. There are three available pins that can be used as general purpose Inputs or Outputs.
Grid Connect specializes in Customizing XPorts!
Software:
The XPort Direct+ has a developer kit available which allows the user to develop custom applications for the XPort Direct+. The out-of-the-box XPort Direct Plus does not require additional software to operate. This kit includes PC software to connect and configure your device to a PC.
Support:
We provide complete technical support for this product with knowledgeable engineers that know how to use the product. We offer phone support and on-line chat support during regular business hours.
Documents and Drivers
Documentation
XPort Direct+ Datasheet
XPort & XPort Direct Feature Comparison
Downloads
Current DeviceInstaller
Current Com Port Redirector
Specifications
Baud Rate
Serial: up to 921Kbaud
GTIN
783384233355
Interface(s)
Network: 10/100M Ethernet
MPN
Xpd1001000-01
Pins
3 Input/Output pins available for custom program use
Temperature Range
Operating: -40°C to +85°C (-40°F to +185°F)
