This product is discontinued and no longer available.

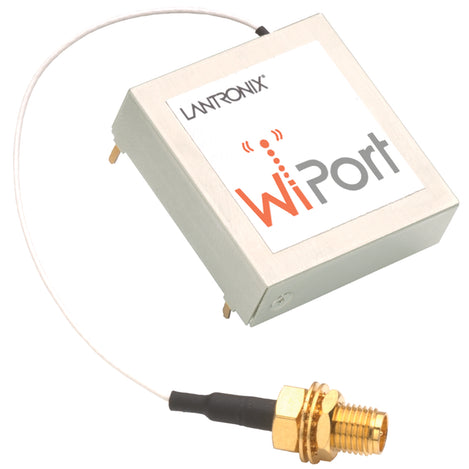

WiPort Serial to 802.11b / g Web-Server, Extended Temperature
WiPort Serial to 802.11b / g Web-Server, Extended Temperature
Product Images
WiPort Serial to 802.11b / g Web-Server, Extended Temperature
SKU: GC-WIPORT-02-EG
MPN: WP2002000G-02
Manufacturer: Lantronix
We Have You Covered
Product Information
Product Description
Add Certified WiFi 802.11b/g and/or Ethernet to your product. If you have a serial port, it can now become a WiFi port with no changes to your software. The WiPort is a device server inside a single package. The WiPort will take your serial data stream and convert it to 802.11b/g packets with no changes to your software.
A web server is also built into the WiPort, which allows you to design your own pages and interface with your product from the Internet. The WiPort can also send e-mail messages when it detects a problem. The WiPort has additional pins and functions that can be used as general purpose inputs or outputs. There is a 40 pin connector on the bottom of the WiPort which brings out the external interface connections.
The WiPort is certified by the Federal Communications Commission (FCC). This certification offers solution providers and OEMs automatic FCC approval for devices implementing WiPort and ultimately eliminates the need for companies to run specific 802.11b/g testing.
Support:
We provide complete technical support for this product with knowledgeable engineers that know how to use the product. We offer phone support and on-line chat support during regular business hours.
Documents and Drivers
Documentation
WiPort Datasheet
Java App Note
Downloads
Current DeviceInstaller
Current Com Port Redirector
Specifications
Baud Rate
Serial: up to 230KMBaud
Certifications
FCC
Connector(s)
Wire for external mounting of antenna
Data Rate
802.11b/g 11Mbps to 1Mbps (g is 54Mbps)
GTIN
783384230781
Interface(s)
- Network: 10/100M Ethernet
- Support for RS232, RS422 and RS485 serial modes
MPN
WP2002000G-02
Product Weight
29 grams
Range
328 ft
Security/Protection
Encryption
Temperature Range
Operating: -40°C to +70°C (-40°F to +158°F)
Voltage
3.3V operation
