Serial Ethernet Converter- ATC-1000 Low Cost RS232/422/485 to Ethernet

Part Number: GC-ATC-1000

MPN: ATC1000

List Price: $59.95
Your Price: $59.95

Availability: In Stock: Ships same or next business day

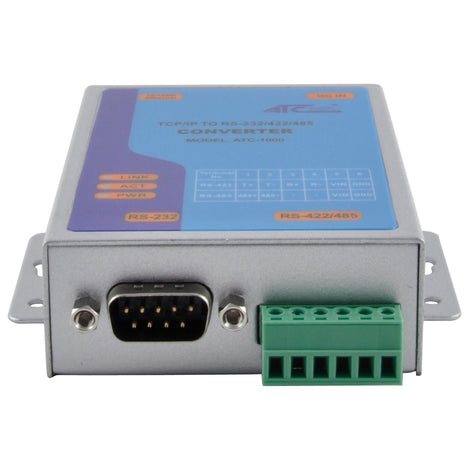

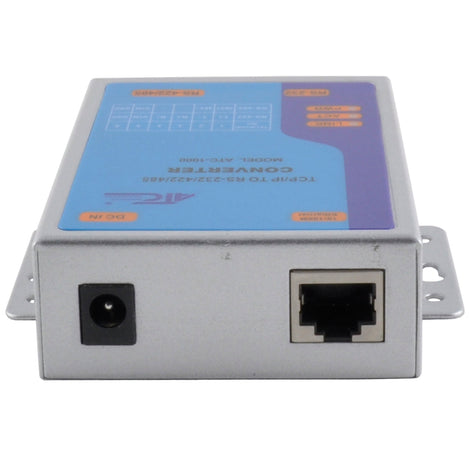

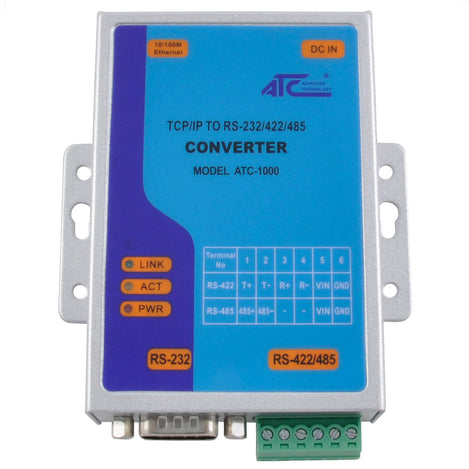

Serial Ethernet Converter - ATC-1000

Click on image to zoom

More Views

Expert Support
  • Description
  • Specs
  • Documentation
  • Reviews
  • Q&A
  • The ATC-1000 is a low cost high performance single port serial (RS232/422/485) to Ethernet converter. The ATC1000 is simple to configure using a web page to configure the serial port parameters and the Ethernet network configuration.

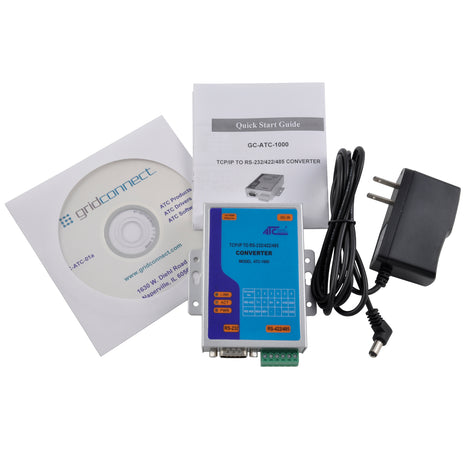

    Includes MS Window®-based PC software for configuration and COM port redirection, and an AC wall power supply.

  • Manufacturers Part Number ATC1000
    Security/Protection All serial ports have 600W lightning protection
    Power Supply Includes AC wall power adapter
    Data Control RS485 conversion offers automatic data control
    Characters 7 or 8 data bits
    Parity odd, even, none
    Stop Bits 1 or 2
    Flow Control RTS/CTS
    • Serial: RS232/422/485 3-in-1 serial interface
    • Network: 10/100M Ethernet, auto detect straight/cross cable
    Protocols Supports: TCP/IP, UDP/IP, ARP, ICMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP
    Serial Interface(s) DB9 Male (DTE), Terminal Block
    Serial Type(s) RS232, RS422, RS485
    Dimensions 95 x 65 x 25mm
    Baud Rate 300bps to 230Kbps
    Control Signals CTS, RTS
    Mounting Panel Mount, easy to install and fix
    Certifications RoHS, CE
    Connector(s) 2, 4 wire RS485, plugable terminal block connector
    Temperature Range Operating: -25 to +70°C (-4 to + 158°F)
