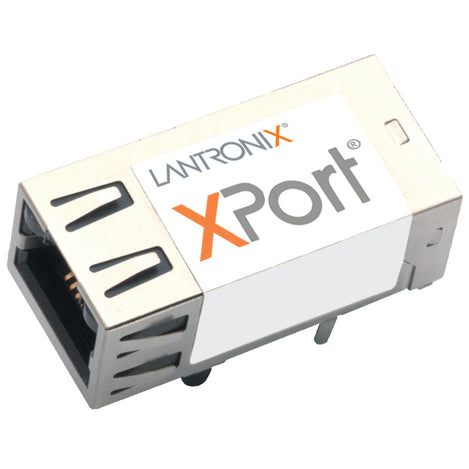

Lantronix XPort with Modbus
Lantronix XPort with Modbus
Product Images
Stock Status: Out of stock (more on the way)
Delivery: Order now and we'll deliver when available
Free shipping to the US on orders over $100
Not recommended for new designs
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
XPort® with Modbus is a compact, integrated solution to web-enable any Modbus device with serial capability. Quickly and easily offer network connectivity as a standard feature on a device.
This easy-to-embed networking processor module enables engineers to focus on their core competency while reducing development time and cost and increasing product value.
Full Networking in a Tiny Package
This small module includes all essential networking features, including
- 10Base- T/100Base-TX Ethernet connection,
- proven operating system,
- an embedded web server,
- e-mail alerts,
- a full TCP/IP protocol stack, and
- 256-bit AES encryption for secure communications.
Integrated Network Communications Module
XPort is powered by our DSTni™ network processor SoC, which includes a 10/100 MAC/PHY and 256 KB of SRAM. It features a built-in web server for communications with a device via a standard Internet browser. Web capability can be used for remote configuration, real-time monitoring or troubleshooting. XPort has 512 KB of on-module Flash for web pages and software upgrades. It acts as a dedicated co-processor that optimizes network activities permitting the host microprocessor to function at maximum efficiency.
Building Intelligent Devices
With XPort you can embed intelligence into any electronic product for applications such as:
- Remote diagnostics and upgrades
- Asset tracking and replenishment
- Automation and control
- Power management
- Remote collaboration
- Personalized content delivery
Features
- Minimal engineering effort required to web-enable virtually any electronic device
- Remote command and control of edge devices
- 256-bit AES encryption for secure communications
- EM C/EMI -compliant; RoHS-compliant
- Everything you need – all in a single RJ45 package
- MS Windows-based DeviceInstaller software and MS Windows-based Com Port Redirector™
Robust, feature-rich software suite eliminating the need to negotiate the intricacies of Transmission Control Protocol (TCP) or Internet Protocol (IP), XPort incorporates:
- Robust Real Time Operating System (RTOS)
- Full-featured network protocol stack
- Built-in web server for device communication and configuration via a standard browser
The Windows®-based DeviceInstaller™ makes configuring one or more XPorts in a subnet quick and easy
- Install and configure XPort and load firmware
- Assign IP & other network specific addresses
- Load custom web pages and view specific device data
- Enable web-based configuration of the device
- Ping or query the attached device(s) over the network
- Allow Telnet communication with the device(s)
Documents and Drivers
Documentation
Lantronix XPort with Modbus Product Brief
Lantronix XPort with Modbus Datasheet
Lantronix XPort with Modbus Integration Guide
APS: Modbus Protocol User Guide
Downloads
Lantronix DeviceInstaller
Specifications
Characters
7 or 8 data bits
Connector
RJ45
Control Signals
DTR/DCD, CTS, RTS
CPU
Based on the DSTni-EX enhanced 16-bit, 48MHz or 88MHz x86 architecture
Data Rates
300 bps to 921,600 bps
Dimensions
33.9 x 16.25 x 13.5 mm (1.33 x .64 x .53 in)
Indicators LED
- 100Base-TX connection
- 10Base-T connection
- Link & activity indicator - Full/half duplex
Firmware
Upgradeable via TFTP and serially
Input Voltage
3.3 VDC
Interface
- CMOS (Asynchronous, 5V tolerant)
- Ethernet 10Base-T or 100Base-TX (Auto-Sensing)
Management
SNMP, Telnet, serial, internal Web server and Microsoft® Windows-based utility for configuration
Memory
256 KB SRAM and 512 KB Flash
Parity
odd, even, none
Protocols
TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOT P, HTTP and AutoIP
Security
Password protection
Temperature Range
- Extended: -40° to 85°C (-40° to 185°F)
- Storage: -40° to 85°C (-40° to 185°F)
Storage Capacity
384 KB for web pages
Weight
9.6 g (0.34 oz)
