PCAN-Ethernet Gateway DR – IPEH-004010
PCAN-Ethernet Gateway DR – IPEH-004010

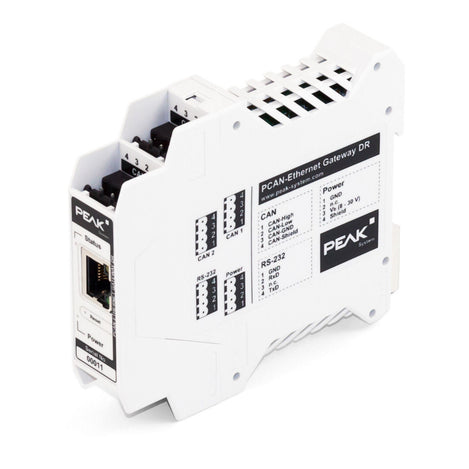

Product Images
PCAN-Ethernet Gateway DR – IPEH-004010
$335.00
5.0 stars 5.0 (2) See customer reviews
SKU: GC-CAN-ENET-GW
MPN: IPEH-004010
Manufacturer: Peak System Technik
Stock Status: In stock
Phone: (800) 975-4743 or (630) 245-1445
Email: sales@gridconnect.com
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
This Peak CAN Ethernet gateway is a CAN to LAN gateway in an industrial DIN rail plastic enclosure. The CAN-Ethernet Gateway DR supports two high-speed CAN channels and 10/100 Mbit/s Ethernet. With an extended operating temperature range and dual isolated channels the CAN-Ethernet Gateway DR is suitable for industrial environments.
Use a pair of CAN-Ethernet Gateway DRs to forward CAN message traffic (also known as CAN message tunneling over Ethernet) between two CAN buses via Ethernet in one direction or bi-directionally. Choose between TCP or UDP for the most efficient message traffic routing. Configuration and administration is performed via a web interface allowing for detailed route selection and provisioning of CAN channels. CAN channels can optionally be setup in listen-only mode.
Support:
The knowledgeable and experienced engineers at Grid Connect provide complete technical support for the PEAK-System CAN products. We offer phone support and on-line chat support during regular business hours.
Documents and Drivers
Documentation
PCAN-Ethernet Gateway DR Manual
PCAN-Gateway Quick Start
Virtual PCAN-Gateway Manual
PCAN-Gateway Developer Documentation
Downloads
Virtual PCAN-Gateway Setup
PEAK-System installation package for device drivers and tools for Windows® 10, 8.1, 7 (32/64-bit) for PEAK PC interfaces.
Included tools: PEAK-CPL, PCAN-View, PLIN-View Pro, and Virtual PCAN-Gateway
Please note: Select the Virtual PCAN-Gateway from the available options during the installation.
PCAN-Ethernet Gateway DR Package
This package is used to update the software and configuration website of the PCAN-Ethernet Gateway DR (IPEH-004010).
PEAK-System PCAN Download Support
Specifications
Certifications
CE
Connector(s)
- RJ-45
- Phoenix 4-pin connector (CAN, Power and RS-232)
CPU
ARM9 Freescale iMX257 with 16 kByte Level 1 Cache and 128 kByte internal SRAM
Data Rate
- CAN: 5 kbit/s - 1 Mbit/s
- LAN: 10/100 Mbit/s
Dimensions
22.5 x 99 x 114.5 (W x H x D)
Enclosure
Plastic IP20
Humidity
15% to 90% non-condensing RH
Indicators LED
Device Status; Power Supply
Indicators LED
- CAN
- Ethernet
- Serial (RS-232 reserved for future use)
Memory
256 MByte NAND Flash and 64 MByte DDR2 RAM
Mounting
DIN Rail
MPN
IPEH-004010
Ports
(2) CAN: Phoenix 4-pin; Ethernet: RJ-45
Product Weight
105g
Protocols
CAN (ISO 11898-2 2.0A and 2.0B), UDP, TCP
Temperature Range
-40ºC to 85ºC (-40ºF to 185ºF)
Voltage
8 -30 V DC
