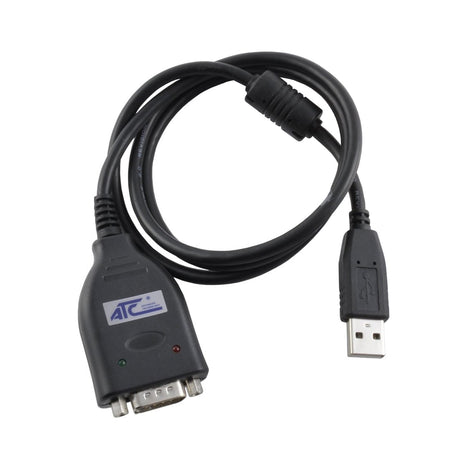

ATC-810 - High Speed Serial RS232 to USB Adapter

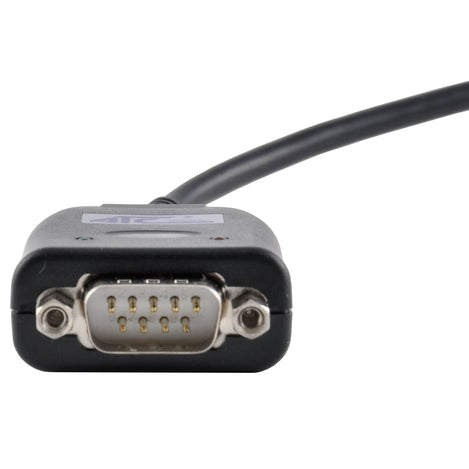

Serial to USB - ATC-810 Serial End
ATC-810 - High Speed Serial RS232 to USB Adapter
Product Images
ATC-810 - High Speed Serial RS232 to USB Adapter
$31.19
5.0 stars 5.0 (2) See customer reviews
SKU: GC-ATC-810
MPN: ATC-810
Manufacturer: ATC
Stock Status: In stock
We've Got You Covered
1 year comprehensive warranty support for all products
30 day money back guarantee
*some exceptions apply
Product Information
Product Description
The ATC-810 is a high speed Serial RS232 to USB adapter using industrial FTDI chipset. It provides simple conversion of RS232 serial data to USB. The serial connector is a DB9 male supporting baud rates from 300 to 460K baud. The USB port is USB 1.1 and 2.0 compatible and supports data rates from 300 to 460K baud.
There is a 15 KV ESD protection for the serial port and 600W surge protection for TXD, RXD signals.
Common usages for the ATC-810 are
- connecting consumer RS232 serial devices to computers without a RS232 serial port.
- connecting existing serial equipment to a USB computer port. Example equipment is
- data modems,
- bar code scanners,
- card readers, and
- other industrial automation devices.
Features
- Simple and easy RS232 serial data to USB conversion
- Conversion via FTDI serial to USB chip
- Serial baud rates up to 460K
- Installation guide
- 1 Year Warranty
Documents and Drivers
Documentation
ATC-810 Datasheet
ATC-810 User’s Manual
ATC-810 CE Certificate
Downloads
ATC-810 Windows Drivers
Specifications
Baud Rate
Up to 460K baud
Cable Length
1 meter
CPU
Uses the FTDI serial to USB chip
Dimensions
60 x 57 x 24 mm (not including cable)
Interface(s)
- Simple DB9 Male RS232 cable
- USB 1.1 and 2.0 compliant
MPN
ATC-810
Power Supply
From the USB +5 VDC computer port
Serial Interfaces
DB9 male connector
Serial Types
RS-232
Supported OS
- Windows 7 to Windows 11
- Windows Server
